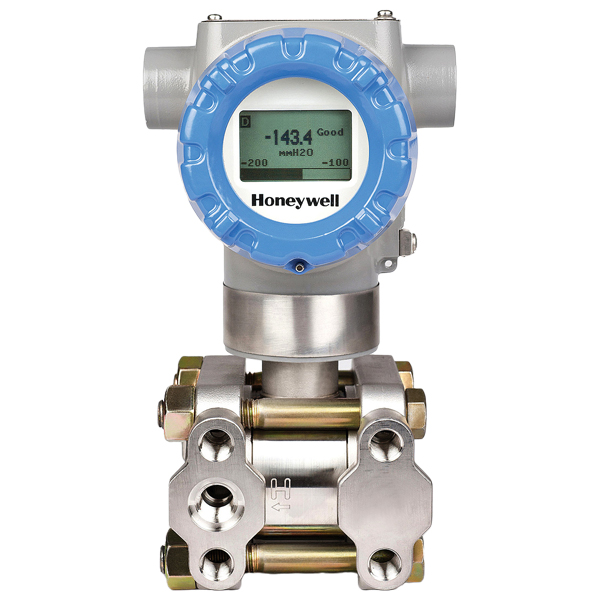

Ordering Information Model STG77L Gauge In-Line Pressure Transmitter Process Wetted Heads & Diaphragm Materials F Process Head/Reference Head Material(1): 316 Stainless Steel / 316 Stainless SteelBarrier Diaphragm Material: Hastelloy C - 276 Fill Fluid 1 Silicone Oil 200 Process Connection G Size/Type: 1/2" NPT (female) Material: Same as Process Head(1) Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(3) / Std Head Orientation Approvals D IECEx Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type C Material: Polyester Powder Coated Aluminum Connection: 1/2 NPTLighting Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections 0 Indicator: None Ext Zero, Span & Config Buttons: NoneLanguages: None Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(4): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory Standard Calibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: NoneMaterial: None Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Certifications & Warranty 00 No additional options Factory 0000 Factory Identification Reference head available w ith Dual Head Gage models only. In-Line Gage models are supplied with Process Head only. STG730,740,770 supplied via 1/2" flange adapter same material as process head except carbon steel shall use 316 SSLeft side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits are configurable by customer
