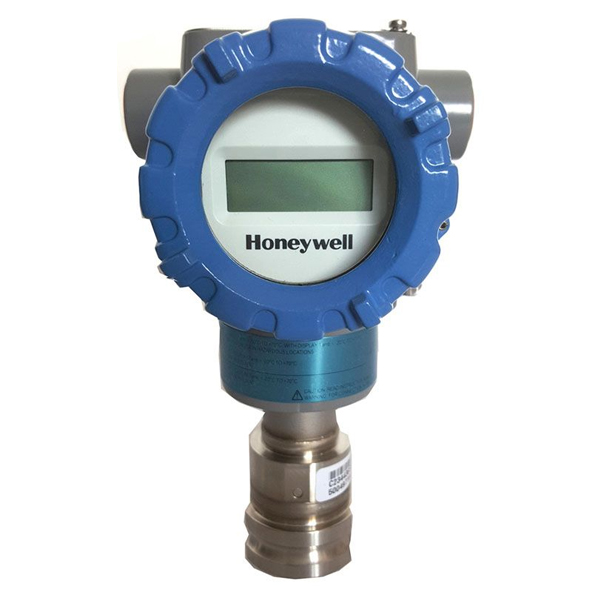

STG74L SmartLine Gauge Pressure Transmitter

Ordering Information Model STG74L Gauge In-Line Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless SteelDiaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection H Size/Type: 1/2" NPT (male)Material: Same as Process Head Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(1) / Std Head Orientation Approvals A Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type A Material: Polyester Powder Coated Aluminum Connection: 1/2 NPTLighting Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(2): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory Standard Calibration Qty: Single Calibration Mounting Bracket 5 Bracket Type: Flat Bracket Material: Carbon Steel Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits are configurable by customer
