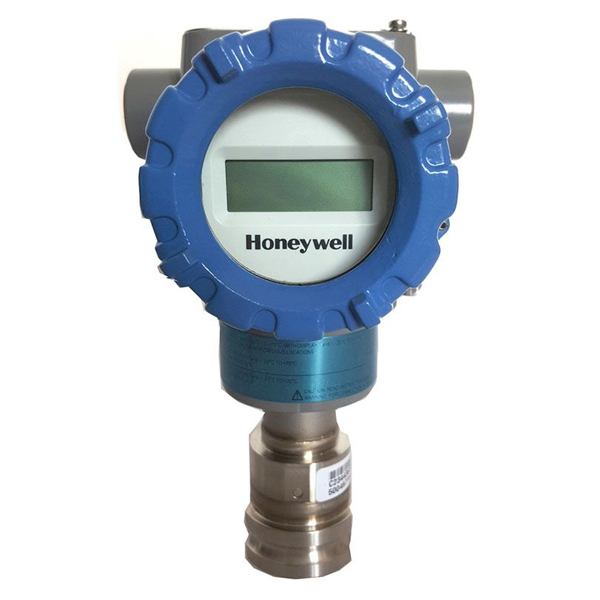

Ordering Information Model STG74L Gauge In-Line Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material:316 Stainless SteelDiaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection H Size/Type: 1/2" NPT (male)Material: Same as Process Head Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(1) / Std Head Orientation Approvals 0 No Approvals Required Electronic Housing Material & Connection Type A Material: Polyster Powder Coated AluminumConnection: 1/2 NPTLighting Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections B Indicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: EN Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(2): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: NoneMaterial: None Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A2 1/2 NPT Male to 3/4 NPT Female 316 SS Certified Conduit Adapter Certifications & Warranty F1 Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits are configurable by customer
