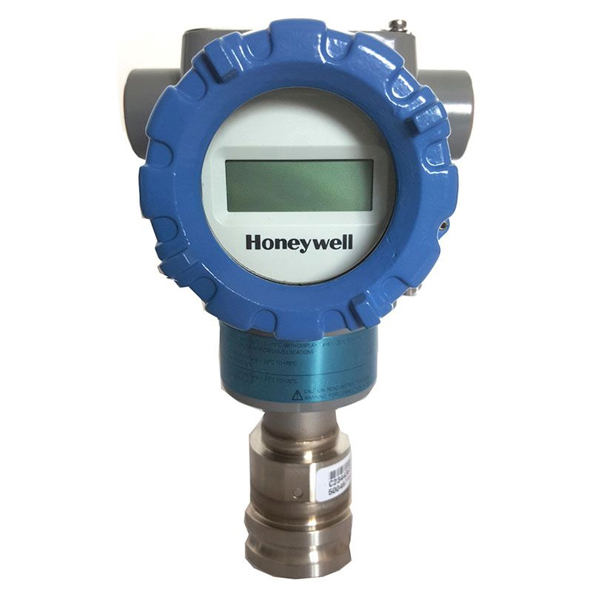

STG74L-E1G000-1-C-BHS-11S-A-31A7-00-0000 | Honeywell STG74L SmartLine Gauge Pressure Transmitter

Ordering Information Model STG74L Gauge In-Line Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless SteelDiaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection G Size/Type: 1/2" NPT (female)Material: Same as Process Head Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(1) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type B Material: Polyster Powder Coated AluminumConnection: M20Lighting Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(2): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StandardCalibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle Bracket Material: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A7 M20 316 SS Certified Conduit Plug Certifications & Warranty 00 No additional options Factory 0000 Factory Identification Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits are configurable by customer
