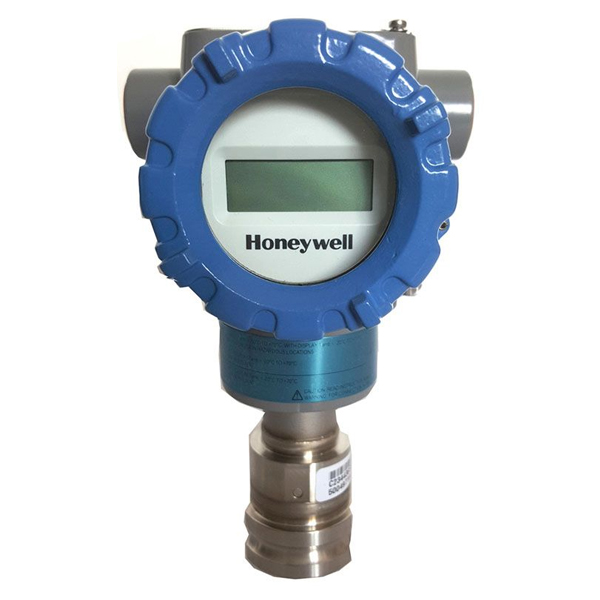

Ordering Information Model STG74L Gauge In-Line Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless SteelDiaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection G Size/Type: 1/2" NPT (female)Material: Same as Process Head(1) Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(2) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type B Material: Polyster Powder Coated AluminumConnection: M20Lighting Protection: None Output/ Protocol F Analog Output: noneDigital Protocol: Foundation Fieldbus Customer Interface Selections B Indicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: EN Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 5 Write Protect: EnabledFail Mode: N/AHigh & Low Output Limits(3): N/A Fieldbus General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty FGF1F5 NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts onlyCalibration Test Report & Certificate of Conformance (F3399) Certificate of Origin (F0195) Factory 0000 Factory Identification STG730,740,770 supplied via 1/2" flange adapter same material as process head except carbon steel shall use 316 SSLeft side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits are configurable by customer
