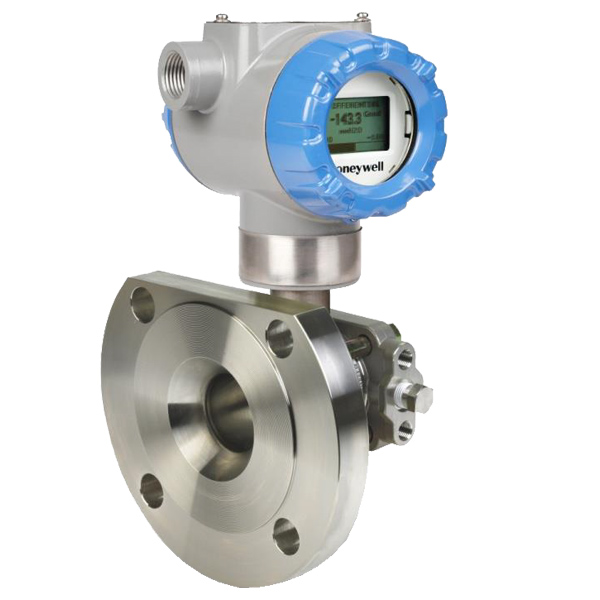

STF82F-41AC1A-T00-I-AH0-11C-B-00A0-F1-0000 | Honeywell STF800 SmartLine ST800 Series Flange Mounted Level Transmitter

Ordering Information Model STF82F Model STF800 Flange Mounted Liquid Level Transmitter Process Wetted Heads & Diaphragm Materials 4 Design: Pseudo FlangeRef. Head: 316 SS(1)Vent Drain Valve on Ref. Head(2): 316 SSBarrier Diaphrm. (wetted): 316L SSDiaphrm. Plate (wetted): N/AExtension (wetted): N/A Fill Fluid (Meter Body & Flange) 1 Silicone Oil 200 Process Connection A Reference Head: 1/4 NPTFlange: High Pressure Side Bolts for Process Heads C Carbon Steel Bolts Carbon Steel Bolts 1 Ref. Head Type: Single EndedVent Type: NoneLocation: NoneVent Material: None Gasket Material A Teflon® or PTFE (Glass Filled) Flange (ANSI Flanges have 125-500 AARH Surface Finish) T Pseudo Flange on Standard DP: 2" ANSI Class 150 with Vent/DrainFlange Material: 316L SS (wetted) Threaded Nut Ring Material: Not Applicable Gasket Ring (wetted) 0 No Selection Extension (wetted) 0 No Selection Approvals I EAC Customs Union (Russia,Belarus,Kazakhstan) Ex Approval,Flame proof, Intrinsically Safe Electronic Housing Material & Connection Type A Material: Polyester Powder Coated AluminumConnection: 1/2 NPT Lightning Protection: None Output/ Protocol H Analog Output: 4-20mA dc Digital Protocol: HART Protocol Customer Interface Selections 0 Indicator: NoneExt Zero, Span & Config Buttons: NoneLanguages: None Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required)Calibration Qty: Single Calibration Mounting Bracket 0 None (not required with flange mount unit) Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F1 Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.Vent/Drains are Teflon or PTFE coated for lubricity.NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
