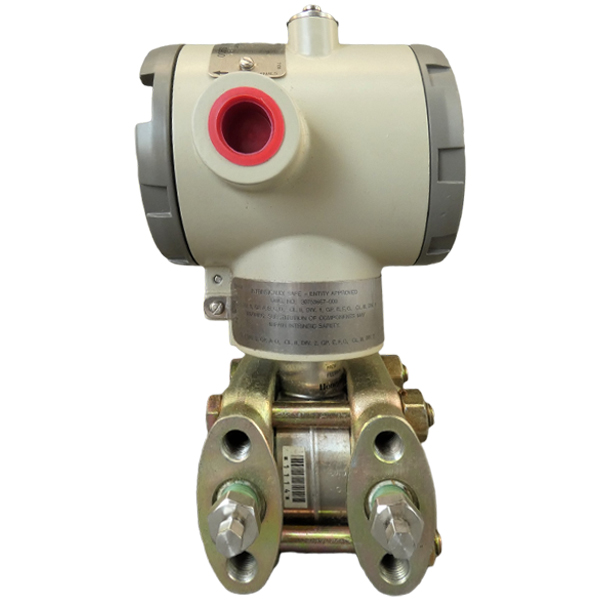

STD924-E1H-00000-SM-CC-TC-TG-S2-MB-F1-3S | Honeywell STD924 Series 900 Differential Pressure Transmitter

Ordering Information Model STD924 ST 3000 Smart Transmitter Differential Pressure Materials of Construction E Process Wetted Heads: 316 SS(1)Vent/Drain Valves and Plugs(2): 316 SSBarrier Diaphragms: 316L SS Fill Fluid 1 DC® 200 Silicone Process Head Configuration H 1/2 NPT with Adapter (on 1/4 NPT Head) 0 0 0 0 0 No Selection Indicating Meter Options SM Smart Meter Transmitter Housing & Electronics Options CCTCTG Custom Calibration and I.D. in MemoryTransmitter Configuration - (non-Fieldbus)Stainless Steel Customer Wired-On Tag (4 lines, 26 characters per line, customer supplied information) Meter Body Options(Seal bolt material depends on Transmitter bolt material) S2 316 SS(3) Adapter Flange - 1/2 NPT with CS Bolts Transmitter Mounting Bracket Options MB Angle Mounting Bracket - Carbon Steel Services/Certificates/Marine Type Approvals Options F1 Calibration Test Report and Certificate of Conformance (F3399) ATEX(4) (LCIE) 3S Intrinsically Safe, Zone 0 Ex ia IIC T4 (Ta = –50°C to +93°C); T5 (Ta = –50°C to +85°C); T6 (Ta = –50°C to +70°C) Enclosure IP 66/67Intrinsically Safe, Zone 1 Ex ia IIC T4 (Ta = –50°C to +93°C); T5 (Ta = –50°C to +85°C); T6 (Ta = –50°C to +70°C) Enclosure IP 66/67 Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.Vent/Drains are sealed with Teflon® or PTFE.Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.See ATEX installation requirements in the ST 3000 User's Manual
