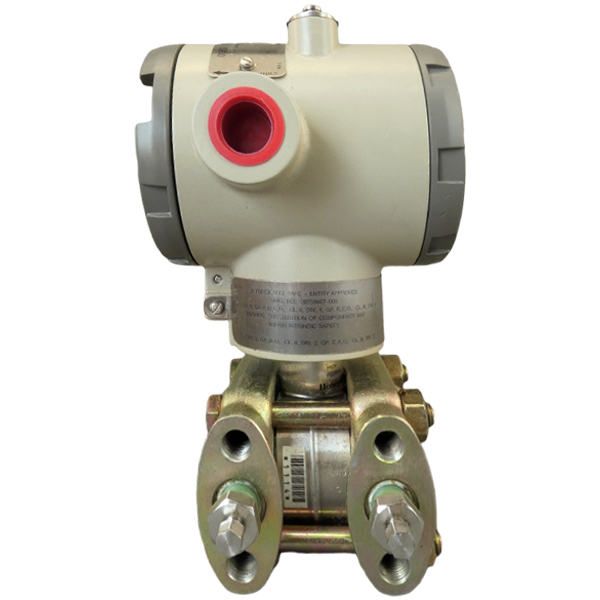

STD924-E1H-00000-HC,1C,CC,CR,F1,S2,SB,SM-B67P | Honeywell STD924 Series 900 Differential Pressure Transmitter

Ordering Information Model STD924 ST 3000 Smart Transmitter Differential Pressure Materials of Construction E Process Wetted Heads: 316 SS(1)Vent/Drain Valves and Plugs(2): 316 SSBarrier Diaphragms: 316L SS Fill Fluid 1 DC® 200 Silicone Process Head Configuration H 1/2 NPT with Adapter (on 1/4 NPT Head) 0 0 0 0 0 No Selection HC FM Approvals 1C Explosion Proof: Class I, Div. 1, Groups A,B,C,DDust-Ignitionproof: Class II, III Div. 1, Groups E,F,GNon-Incendive: Class I, Div. 2, Groups A,B,C,DIntrinsically Safe: Class I, II, III, Div. 1, Groups A,B,C,D,E,F,G Transmitter Housing & Electronics Options CC Custom Calibration and I.D. in Memory Meter Body Options(Seal bolt material depends on Transmitter bolt material) CR NACE A286 SS Bolts and NACE 304 SS Nuts for Process Heads Services/Certificates/Marine Type Approvals Options F1 Calibration Test Report and Certificate of Conformance (F3399) Meter Body Options(Seal bolt material depends on Transmitter bolt material) S2 316 SS(1) Adapter Flange - 1/2 NPT with CS Bolts Transmitter Mounting Bracket Options SB Angle Mounting Bracket - 304 SS Indicating Meter Options SM Smart Meter Meter Body Options(Seal bolt material depends on Transmitter bolt material) B6 316 SS(1) Blind Adapter Flange with B7M Bolts 7P Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.Vent/Drains are sealed with Teflon® or PTFE.
