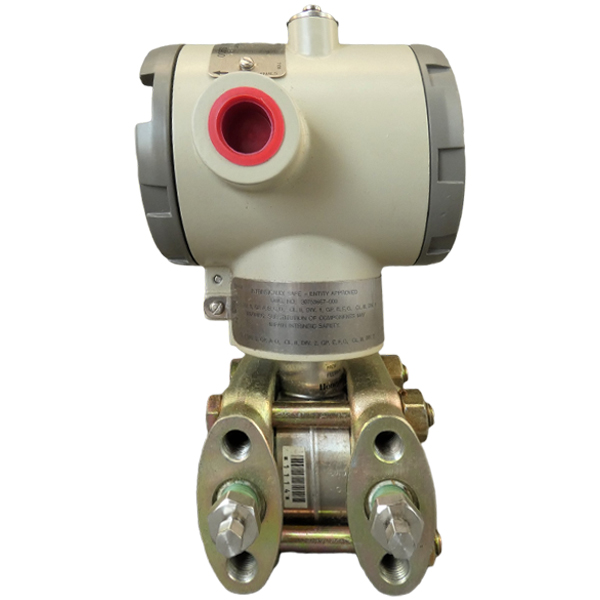

STD924-E1H-00000-CC,DE,MB,S2,TC,W1,1C | Honeywell STD924 Series 900 Differential Pressure Transmitter

Ordering Information Model STD924 ST 3000 Smart Transmitter Differential Pressure Materials of Construction E Process Wetted Heads: 316 SS(1)Vent/Drain Valves and Plugs(2): 316 SSBarrier Diaphragms: 316L SS Fill Fluid 1 DC® 200 Silicone Process Head Configuration H 1/2 NPT with Adapter (on 1/4 NPT Head) 0 0 0 0 0 No Selection Transmitter Housing & Electronics Options CC Custom Calibration and I.D. in Memory Communication Options DE DE Protocol communications Transmitter Mounting Bracket Options MB Angle Mounting Bracket - Carbon Steel Meter Body Options(Seal bolt material depends on Transmitter bolt material) S2 316 SS(3) Adapter Flange - 1/2 NPT with CS Bolts Transmitter Housing & Electronics Options TC Transmitter Configuration - (non-Fieldbus) Warranty Options W1 Additional Warranty - 1 year FM Approvals 1C Explosion Proof: Class I, Div. 1, Groups A,B,C,DDust-Ignitionproof: Class II, III Div. 1, Groups E,F,GNon-Incendive: Class I, Div. 2, Groups A,B,C,DIntrinsically Safe: Class I, II, III, Div. 1, Groups A,B,C,D,E,F,G Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.Vent/Drains are sealed with Teflon® or PTFE.Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.
