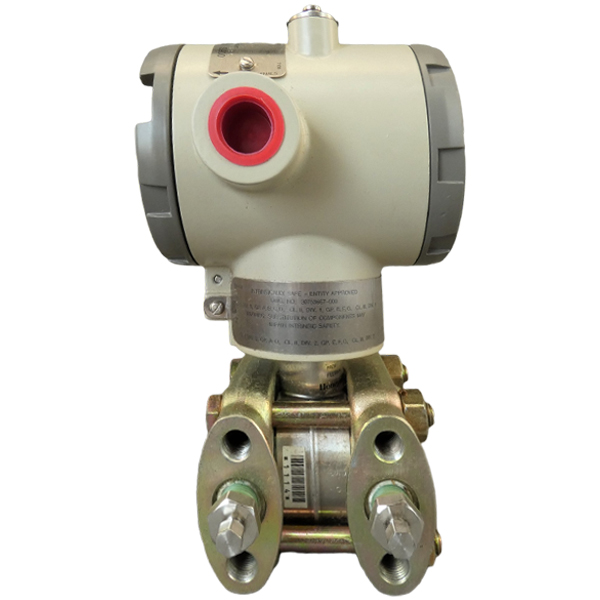

STD924-E1H-00000-3S,CI,F1,HC,LP,SB,SM,SS,TP,ZS

Ordering Information Model STD924 ST 3000 Smart Transmitter Differential Pressure Materials of Construction E Process Wetted Heads: 316 SS(1)Vent/Drain Valves and Plugs(2): 316 SSBarrier Diaphragms: 316L SS Fill Fluid 1 DC® 200 Silicone Process Head Configuration H 1/2 NPT with Adapter (on 1/4 NPT Head) 0 0 0 0 0 No Selection ATEX(3) 3S Intrinsically Safe, Zone 0Ex ia IIC T4 (Ta = –50°C to +93°C); T5 (Ta = –50°C to +85°C); T6 (Ta = –50°C to +70°C)Enclosure IP 66/67Intrinsically Safe, Zone 1Ex ia IIC T4 (Ta = –50°C to +93°C); T5 (Ta = –50°C to +85°C); T6 (Ta = –50°C to +70°C)Enclosure IP 66/67 Indicating Meter Options CI Custom Configuration of Smart Meter Services/Certificates/Marine Type Approvals Options F1 Calibration Test Report and Certificate of Conformance (F3399) HC Transmitter Housing & Electronics Options LP Lightning Protection Transmitter Mounting Bracket Options SB Angle Mounting Bracket - 304 SS Indicating Meter Options SM Smart Meter Meter Body Options(Seal bolt material depends on Transmitter bolt material) SS 316 SS Bolts and 316 SS Nuts for Process Heads Services/Certificates/Marine Type Approvals Options TP Over-Pressure Leak Test with Certificate ( F3392 ) Indicating Meter Options ZS Local Zero and Span Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.Vent/Drains are sealed with Teflon® or PTFE.See ATEX installation requirements in the ST 3000 User's Manual
