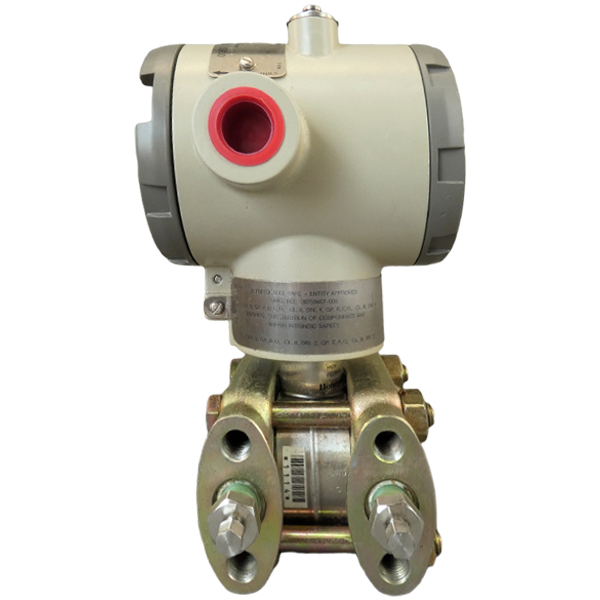

STD924-A1H-00000-1C,AN,F1,MB,S2,TG,ZS+XXXX | Honeywell STD924 Series 900 Differential Pressure Transmitter

Ordering Information Model STD924 ST 3000 Smart Transmitter Differential Pressure Materials of Construction A Process Wetted Heads: Carbon Steel(1)Vent/Drain Valves and Plugs(2): 316 SSBarrier Diaphragms: 316L SS Fill Fluid 1 DC® 200 Silicone Process Head Configuration H 1/2 NPT with Adapter (on 1/4 NPT Head) 0 0 0 0 0 No Selection FM ApprovalSM 1C Explosion Proof: Class I, Div. 1, Groups A,B,C,DDust-Ignitionproof: Class II, III Div. 1, Groups E,F,GNon-Incendive: Class I, Div. 2, Groups A,B,C,DIntrinsically Safe: Class I, II, III, Div. 1, Groups A,B,C,D,E,F,G Communication Options AN Analog only (can be configured using appropriate Honeywell DE tool) Services/Certificates/Marine Type Approvals Options F1 Calibration Test Report and Certificate of Conformance (F3399) Transmitter Mounting Bracket Options MB Angle Mounting Bracket - Carbon Steel Meter Body Options(Seal bolt material depends on Transmitter bolt material) S2 316 SS(3) Adapter Flange - 1/2 NPT with CS Bolts Transmitter Housing & Electronics Options TG Stainless Steel Customer Wired-On Tag (4 lines, 26 characters per line, customer supplied information) Indicating Meter Options ZS Local Zero and Span Factory Identification XXXX Factory Identification Carbon Steel heads are zinc-plated and not recommended for water service due to hydrogen migration. For that service, use 316 stainless steel wetted Process Heads.Vent/Drains are sealed with Teflon® or PTFE.Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.
