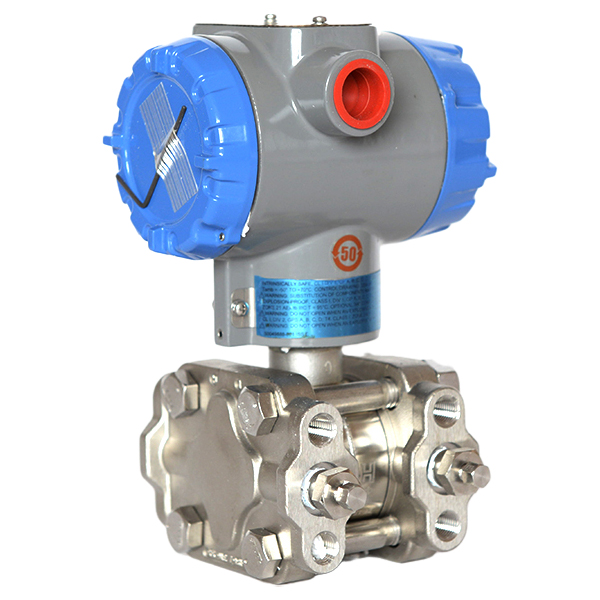

Ordering Information Model STD830 STD830 SmartLine Differential Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless Steel Diaphragm Material: 316L Stainless Steel Fill Fluid 1 Silicone Oil 200 Process Connection A NoneNone (1/4" NPTF female thread Std) Bolt/Nut Materials S 316 SS Vent/Drain Type/Location 4 Head Type: Dual EndedVent Type: Standard VentLocation: EndVent Material: Matches Head Material(1) Gasket Material A Teflon® or PTFE (Glass Filled) Static Pressure S Standard Static Pressure - 4500 psig (310 bar) except STD810: 50 psi (3.5 bar) Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(2) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type D Material: Polyester Powder Coated AluminumConnection: M20Lightning Protection: Yes Output/ Protocol F Analog Output: noneDigital Protocol: Foundation Fieldbus Customer Interface Selections E Indicator: AdvancedExt Zero, Span & Config Buttons: YesLanguages: EN, GR, FR, IT,SP, RU, TU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 6 Write Protect: DisabledFail Mode: N/AHigh & Low Output Limits(3): N/A Fieldbus or Profibus General Configuration S Factory Standard Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty FGFXF1 NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts onlyEN10204 Type 3.1 Material Traceability (FC33341) Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when requiredLeft side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table VcNOTE: This item is a replacement of STD730-E1AS4AS-1-C-DFC-16S-B-31A0-FG,FX,F1,TF-0000
