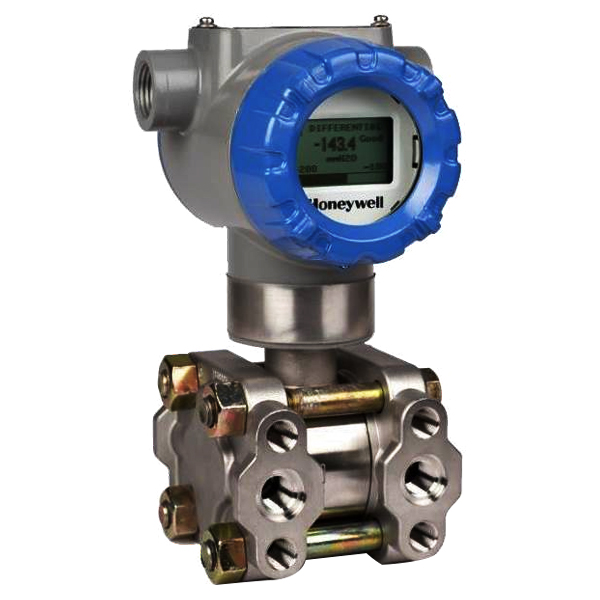

Ordering Information Model STD730 Differential Pressure Transmitter Process Wetted Heads & Diaphragm Materials J Process Head Material: Hastelloy C-276Diaphragm Material: Hastelloy C-276 Fill Fluid 1 Silicone Oil 200 Process Connection H 1/2" NPT femaleMaterials to Match Head & Head Bolt Materials Selections(1) Bolt/Materials S 316 SS Vent/Drain Type/Location 4 Head Type: Dual EndedVent Type: Standard VentLocation: EndVent Material: Matches Head Material(1) Gasket Material A Teflon® or PTFE (Glass Filled) Static Pressure S Standard Static Pressure - 4500 psig (315 bar) Head/Connect Orientation 1 Standard, High Side Left, Low Side Right(2) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type B Material: Polyster Powder Coated AluminumConnection: M20Lighting Protection: None Output/Protocol F Analog Output: n/aDigital Protocol: Foundation Fieldbus Customer Interface Selections B Indicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: English Application Software 1 Diagnostics: Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 5 Write Protect: EnabledFail Mode: N/AHigh & Low Output Limits:(2) N/A Fieldbus General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F1F5 Calibration Test Report & Certificate of Conformance (F3399)Certificate of Origin (F0195) Factory 0000 Factory Identification Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required Left side/Right side as viewed from the customer connection perspective
