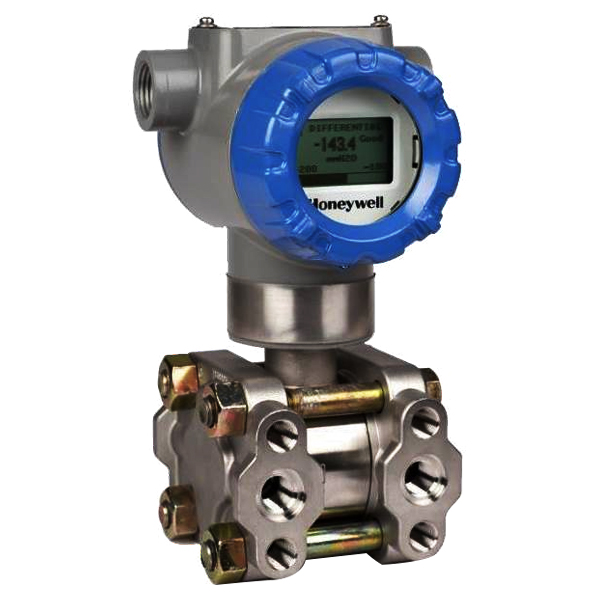

Ordering Information Model STD730 Differential Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless SteelDiaphragm Material: 316 Stainless Steel Fill Fluid 1 Silicone Oil 200 Process Connection H 1/2" NPT femaleMaterials to Match Head & Head Bolt Materials Selections(1) Bolt/Materials S 316 SS Vent/Drain Type/Location 1 Head Type: Single Ended Vent Type: NoneLocation: NoneVent Material: None Gasket Material A Teflon® or PTFE (Glass Filled) Static Pressure S Standard Static Pressure - 4500 psig (315 bar) Head/Connect Orientation 1 Standard, High Side Left, Low Side Right(2) / Std Head Orientation Approvals F INMETRO Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type A Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None Output/Protocol H Analog Output: 4-20mA dc Digital Protocol: HART Protocol Customer Interface Selections SIndicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Diagnostics: Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits:(3) Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory Std Calibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: None Material: None Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F5F1 Certificate of Origin (F0195) Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
