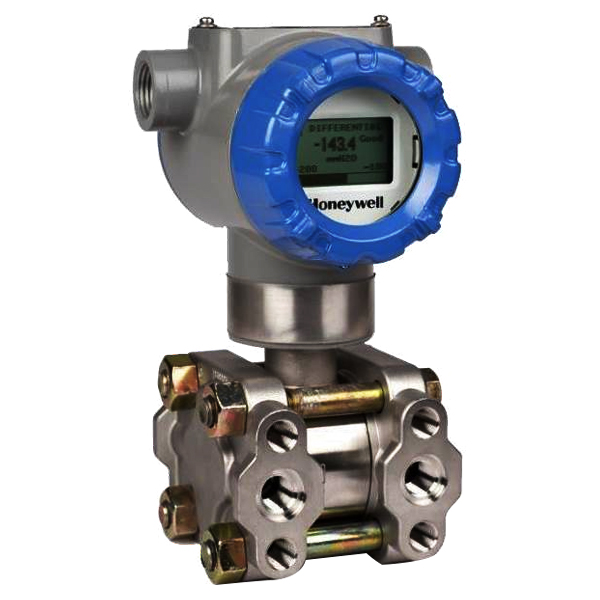

Ordering Information Model STD730 Differential Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless SteelDiaphragm Material: 316 Stainless Steel Fill Fluid 1 Silicone Oil 200 Process Connection A NoneNone (1/4" NPTF female thread Std) Bolt/Materials S 316 SS Vent/Drain Type/Location 1 Head Type: Single Ended Vent Type: NoneLocation: NoneVent Material: None Gasket Material A Teflon® or PTFE (Glass Filled) Static Pressure S Standard Static Pressure - 4500 psig (315 bar) Head/Connect Orientation 1 Standard, High Side Left, Low Side Right(1) / Std Head Orientation Approvals F INMETRO Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type E Material: 316 Stainless Steel (Grade CF8M) Connection: 1/2 NPT Lighting Protection: None Output/Protocol H Analog Output: 4-20mA dc Digital Protocol: HART Protocol Customer Interface Selections BIndicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: English Application Software 1 Diagnostics: Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits:(2) Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: None Material: None Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Certifications & Warranty FXF1 EN10204 Type 3.1 Material Traceability (FC33341) Calibration Test Report & Certificate of Conformance (F3399) Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
