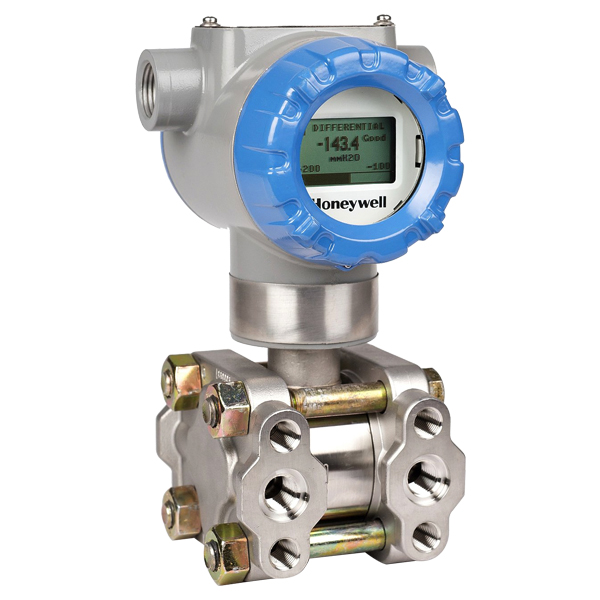

Ordering Information Model STD720 Differential Pressure Transmitter Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless Steel Diaphragm Material: 316L Stainless Steel Fill Fluid 1 Silicone Oil 200 Process Connection A NoneNone (1/4" NPTF female thread Std) Bolt/Materials S 316 SS Vent/Drain Type/Location 4 Head Type: Dual Ended Vent Type: Standard VentLocation: EndVent Material: Matches Head Material(1) Gasket Material A Teflon® or PTFE (Glass Filled) Static Pressure S Standard Static Pressure - 4500 psig (315 bar) Head/Connect Orientation 1 Standard, High Side Left, Low Side Right(2) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type B Material: Polyester Powder Coated Aluminum Connection: M20 Lighting Protection: None Output/Protocol H Analog Output: 4-20mA dc Digital Protocol: HART Protocol Customer Interface Selections C Indicator: BasicExt Zero, Span & Config Buttons: YesLanguages: English Application Software 1 Diagnostics: Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdc High & Low Output Limits:(2) Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle Bracket Material: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A7 M20 316 SS Certified Conduit Plug Certifications & Warranty F1FXTP Calibration Test Report & Certificate of Conformance (F3399)EN10204 Type 3.1 Material Traceability (FC33341) Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) Factory 0000 Factory Identification Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
