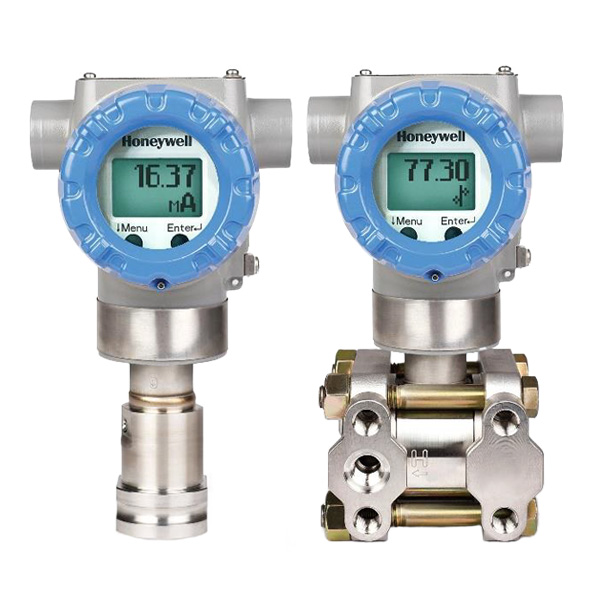

Ordering Information Model STA74S Absolute Pressure Transmitters Process Head & Diaphragm Materials -E Process Head/Reference Head Material(1): 316 Stainless Steel /316 Stainless Steel(2)Barrier Diaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection G Size/Type: 1/2" NPT (female) Material: Same as Process Head(3) Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneVent Location: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Ref Side Right(4) / Std Head Orientation Approvals 0 No Approvals Required Electronic Housing Material & Connection Type C Material: Polyester Powder Coated Aluminum Connection: 1/2 NPTLightning Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard(w/Internal Zero,Span&Config Buttons) Ext Zero,Span & Config Buttons: NoneLanguages: EN, RU App S/W 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(4): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: NoneMaterial: None Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F1F5 Calibration Test Report & Certificate of ConformanceCertificate of Origin Factory 0000 Factory Identification Reference head available only with Dual head models. In-line models supplied with process head only.When selected for In-Line Gage models the Process Head / Bonnet is supplied in Dual Certified SS316/316L.STA725,745 supplied via 1/2" flange adapter same material as process head except carbon steel shall use 316 SS.Left side/Right side as viewed from the customer connection perspectiveNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the custom
