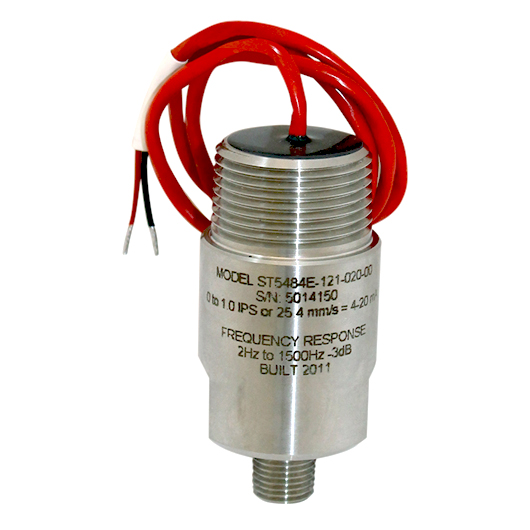

ST5484E-123-180-00 | Metrix Seismic Velocity Transmitter

Product Number: ST5484E-123-180-00Ordering InformationModel: ST5484E - Seismic Velocity 4-20 mA Velocity TransmitterFull Scale Range¹: 123 - 2.0 in/sec (50.8 mm/s) peak²Housing Material & Stud Size¹: 1 - 303 SS housing, ½” NPT studHazardous Area Certification3,4,5: 8 - ATEX/IECEx, Ex d IIC T4 Gb (explosion proof)Connection Type³: 0 - 24” Flying Leads, 2-wire; (4-20 mA output only)High-Pass Filter: 0 - 2 Hz (standard)Low-Pass Filter: 0 - 1500 Hz (standard)NOTES:Smaller-diameter mounting studs are not able to withstand sustained ambient vibration levels above 2.0 in/sec. Consult Table 2 for allowable combinations of A and B options.The ST5484E uses an RMS amplitude detection circuit. Full scale ranges in peak units use scaled RMS (i.e., RMS x v2). The “derived peak" measurements will equal true peak only under the special case of a pure sinusoid, not complex vibration signals.Hazardous Area Certifications are not compatible with all connections types. Consult Table 3 for allowable combinations of C & D options.Some approvals require instrinsic safety barriers, others requires Explosion-Proof wiring practices.ATEX/IECEx/IMETRO Ex d (flameproof) approvals (ordering option C=8 or C=6) require conduit elbow 8200-AAA-IEC, sold separately.
