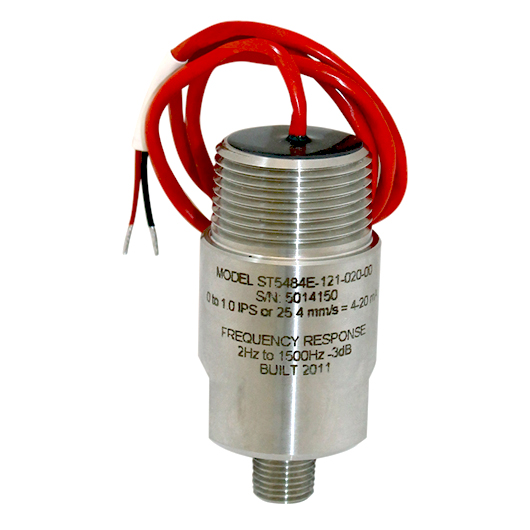

ST5484E-123-032-00 | Metrix Seismic Velocity Transmitter

Product Number: ST5484E-123-032-00Ordering InformationModel: ST5484E - Seismic Velocity 4-20 mA Velocity TransmitterFull Scale Range¹: 123 - 2.0 in/sec (50.8 mm/s) peak²Housing Material & Stud Size¹: 0 - 303 SS housing, 1/4 NPT studHazardous Area Certification3,4,5: 3 - ATEX, EEx ia IIC T4 Ga (intrinsically safe)Connection Type³: 2 - Terminal Block, 2-wire6; (4-20 mA output only)High-Pass Filter: 0 - 2 Hz (standard)Low-Pass Filter: 0 - 1500 Hz (standard)NOTES:Smaller-diameter mounting studs are not able to withstand sustained ambient vibration levels above 2.0 in/sec. Consult Table 2 for allowable combinations of A and B options.The ST5484E uses an RMS amplitude detection circuit. Full scale ranges in peak units use scaled RMS (i.e., RMS x v2). The “derived peak" measurements will equal true peak only under the special case of a pure sinusoid, not complex vibration signals.Hazardous Area Certifications are not compatible with all connections types. Consult Table 3 for allowable combinations of C & D options.Some approvals require instrinsic safety barriers, others requires Explosion-Proof wiring practices.ATEX/IECEx/IMETRO Ex d (flameproof) approvals (ordering option C=8 or C=6) require conduit elbow 8200-AAA-IEC, sold separately.It may be difficult to connect wires to terminal blocks with the optional 8200 conduit elbow attached. It is suggested that wires be routed through conduit elbow, then landed on terminals, and then conduit elbow secured. Use of union adapter 8201 may be required.
