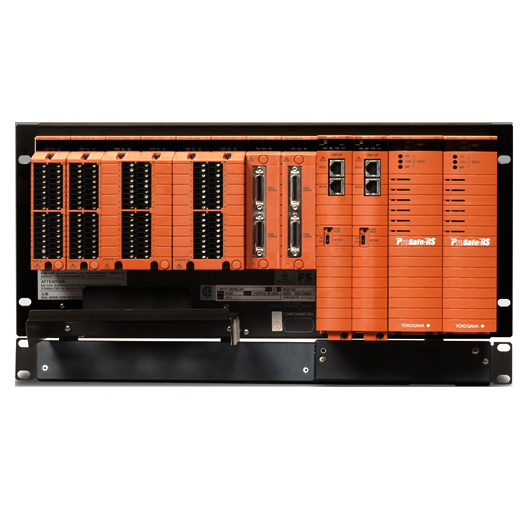

SSC50D-S2511 | Yokogawa Duplexed Safety Control Unit

Product Number: SSC50D-S2511Model: Duplexed Safety Control UnitBrand: YokogawaModelSuffix CodeDescriptionSSC50DDuplexed Safety Control Unit (for Vnet/IP, Rack Mountable Type)Suffix Code-SStandard Type (-20 to 40°C) (with ISA Standard G3 )2Dual-redundant power supply5With no explosion protection1100-120 V AC power supply1CFS1100 Safety Control Function License (for R3)¹ ²Note: Install the 19-inch rack mountable type devices in a keyed metallic cabinet to conform to the safety standards, the EMC conformity standards and the explosion protection standards.For details, refer to ProSafe-RS Installation Guidance (TI 32P01J10-01EN).Note: Select the option code /ATDOC to follow the ATEX Directive for use in potentially explosive atmospheres.Note: When the release number is earlier than R3.02.31 or R4.01.31, use SCP451- 1 as a processor module. When the release number is R3.02.31 and R4.01.31 or later, use SCP451- 1 or SCP451- 3 as a processor module. SCP451- 1 and SCP451- 3 can be placed in the same safety control unit.SSC50D- 1 can be used with R4.01 or later.SSC50D- 1 and SSC50D- 2 do not comply with RoHS Directive.NOTE: Replacement for SSC50D-S2111
