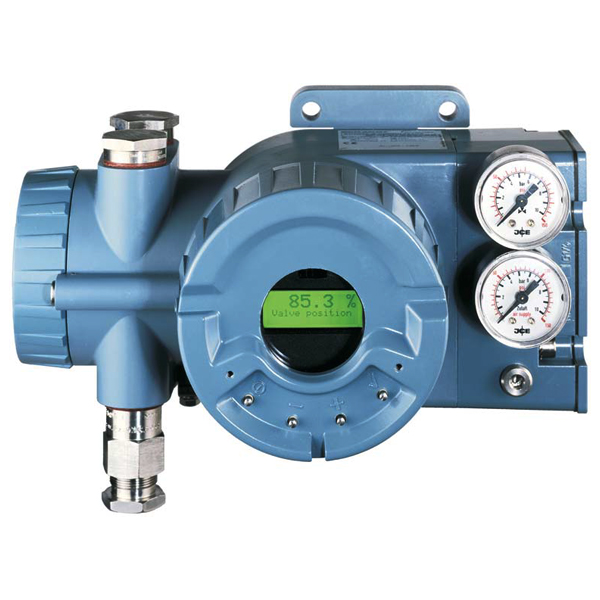

Key Features of Foxboro SRD960-BIHQDMN7FDZRA-X1Intelligent digital valve positioner for precise valve controlHigh positioning accuracy and repeatabilityAdvanced self-diagnostic and monitoring functionsRugged industrial design for harsh operating environmentsEasy calibration and commissioningReduced air consumption for improved efficiencySupports pneumatic actuator integrationSuitable for linear and rotary actuatorsEnhanced process stability and operational safetyLong service life with low maintenance requirementsOrdering Information Model SRD960 Universal Positioner Version -B Single Acting I Input / Communication H HART (4-20 mA)(1)(2) Additional Inputs / Outputs Q Analog Position Feedback (4-20 mA)- integrated and connected as Option Board(1)(2)- stand alone feedback unit(2)(3) Display / Indication D Grafical LCD (cover with window and with external pushbuttons)(1) Gauges M Built-In Gauges with scale in bar/psi(1)(2) Pneumatical Connection N 1/4 - 18 NPT(1)(2) Electrical Connection 7 M20 x 1.5 (w/o cable glands or plugs for certified SRD960) Electrical Certification / Explosion protection FDZ Explosion-proof according to FM (w/o cable glands or plugs)(1)(2) Mounting Preparation on Positioner R Rotary Actuators according to VDI/VDE 3845(2) Language A LCD Language in English / German / French(1)(2)(4) Options -X-1 Cover for protection of local push buttons(1)(5)Certificate EN 10204-2.1 - Certificate of compliance with the order Not available with Version -TNOT WITH Version -LNOT WITH Version -B, Version COnly with Display / Indication DNot in connection with Display / Indication SBenefits of Using SRD960 Intelligent PositionerImplementing the Foxboro SRD960 intelligent valve positioner helps improve process control reliability while reducing operational downtime and maintenance costs.Main AdvantagesImproves valve response accuracyEnhances plant efficiency and productivityMinimizes process variabilityEnables predictive maintenance through diagnosticsReduces manual calibration effortsIncreases system reliability in critical applicationsSupports digital plant modernization initiatives
