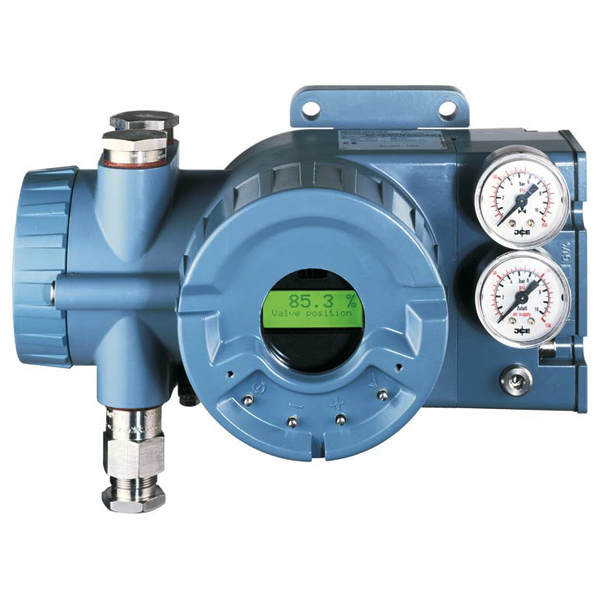

Ordering Information Model SRD960 Universal Positioner Version -B 0 in Input / Communication H HART (4-20 mA)(1)(2) Additional Inputs / Outputs N Without Additional Inputs / Outputs(2)(3) Display / Indication D Grafical LCD (cover with window and with external pushbuttons)(1) Gauges M Built-In Gauges with scale in bar/psi(1)(2) Pneumatical Connection N 1/4 - 18 NPT(1)(2) Electrical Connection 7 M20 x 1.5 (w/o cable glands or plugs for certified SRD960) Electrical Certification / Explosion protection EDZ Flameproof II 2 G EEx d IIB/IIC T4/T5/T6 according to ATEX (w/o cable glands or plugs) Mounting Preparation on Positioner N NAMUR acc. to IEC 534-6 / Direct Mounting to Flowserve actuators FlowPak and FlowTop / / Rotary Actuators according to VDI/VDE 3845(2) Language F LCD Language in English / German / Italian(1)(2)(4) Options -X Cover for protection of local push buttons(1)(5) Not available with Version -TNOT WITH Version -LWITH (Version: B, C) ORWITH (Version: T) AND (Input: X) AND (Optional Features: H)Only with Display / Indication DNot in connection with Display / Indication S
