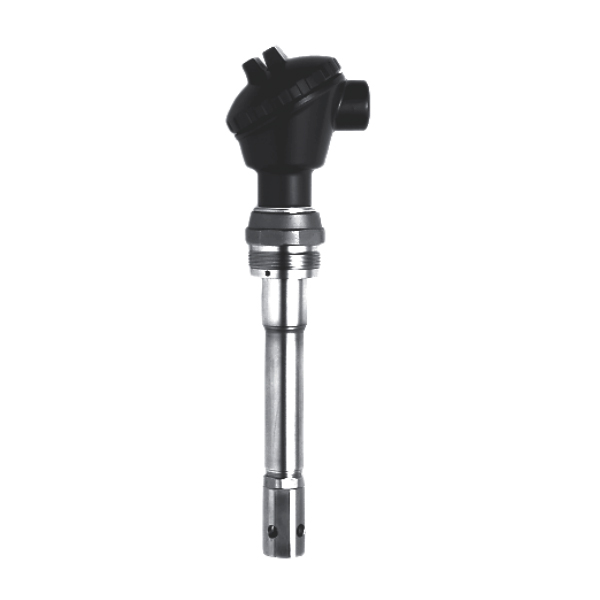

SC210G-A-303-L105-05*A | Yokogawa SC210G Conductivity Sensor

Part Number: SC210G-A-303-L105-05*AModel: SC210G Conductivity SensorManufacturer: YokogawaSpecificationsObject of measurement: Conductivity of liquids or solutionsMeasuring principle: Two-electrode systemCell constant: 0.05 cm-1, 5 cm-1Measuring range:0-0.5 to 0-200 µS/cm (Cell constant: 0.05 cm-1)0-200 µS/cm to 0-20 mS/cm (Cell constant: 5 cm-1)Temperature range:0 to 105 deg C (chamber material: SCS14)0 to 100 deg C (chamber material: Polypropylene)Pressure range:0 to 1 MPa (chamber material: SCS14)0 to 500 kPa(chamber material: Polypropylene)Measuring solution condition:Flow rate: less than 20 l/min is recommended for flow-through type.Air bubbles should not be mixed in the sample solutions to obtain correct measured values.Temperature sensor: PB36 NTCConstruction: JIS C0920 watertight (equivalent to NEMA4)Process connection: Screw-in, Flange, Flow-through, with gate valveEstimate
