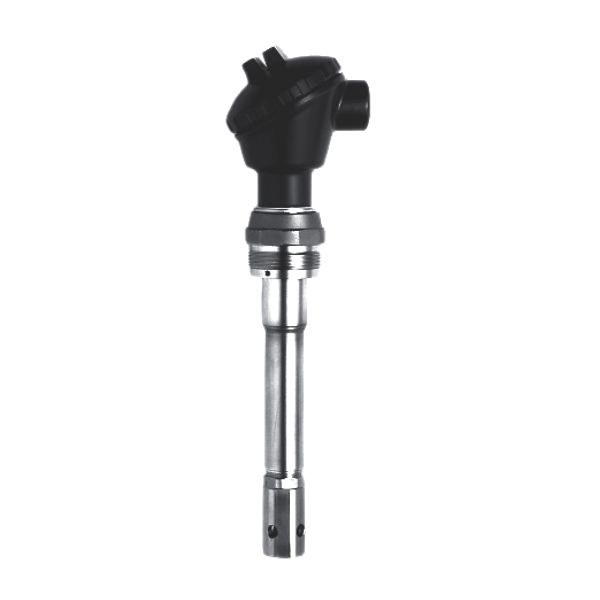

Flow rate: less than 20 l/min is recommended for flow-through type.Air bubbles should not be mixed in the sample solutions to obtain correct measured values.Temperature sensor: PB36 NTCConstruction: JIS C0920 watertight (equivalent to NEMA4)Process connection: Screw-in, Flange, Flow-through, with gate valve Ordering Information Model SC210G Conductivity detector Measuring range -A Low range; cell constant: 0.05 cm-1 Construction -207 Flange type: ANSI Class150 2 RF flange (with serration) Sensor length -L015 150 mm (Standard) Cable length -05 5 m (M4 ring terminals)(1) Style code *A Style A Option /SCT/ANSI Stainless steel tag plateWith ANSI connection adaptor(2) Used for connection to FLXA202, FLXA21.Adaptor for cable inlet (carbon steel)
Описание
SpecificationsObject of measurement: Conductivity of liquids or solutionsMeasuring principle: Two-electrode systemCell constant: 0.05 cm-1, 5 cm-1Measuring range:0-0.5 to 0-200 µS/cm (Cell constant: 0.05 cm-1)0-200 µS/cm to 0-20 mS/cm (Cell constant: 5 cm-1)Temperature range:0 to 105 deg C (chamber material: SCS14)0 to 100 deg C (chamber material: Polypropylene)Pressure range:0 to 1 MPa (chamber material: SCS14)0 to 500 kPa(chamber material: Polypropylene)Measuring solution condition:Flow rate: less than 20 l/min is recommended for flow-through type.Air bubbles should not be mixed in the sample solutions to obtain correct measured values.Temperature sensor: PB36 NTCConstruction: JIS C0920 watertight (equivalent to NEMA4)Process connection: Screw-in, Flange, Flow-through, with gate valve Ordering Information Model SC210G Conductivity detector Measuring range -A Low range; cell constant: 0.05 cm-1 Construction -207 Flange type: ANSI Class150 2 RF flange (with serration) Sensor length -L015 150 mm (Standard) Cable length -05 5 m (M4 ring terminals)(1) Style code *A Style A Option /SCT/ANSI Stainless steel tag plateWith ANSI connection adaptor(2) Used for connection to FLXA202, FLXA21.Adaptor for cable inlet (carbon steel)
