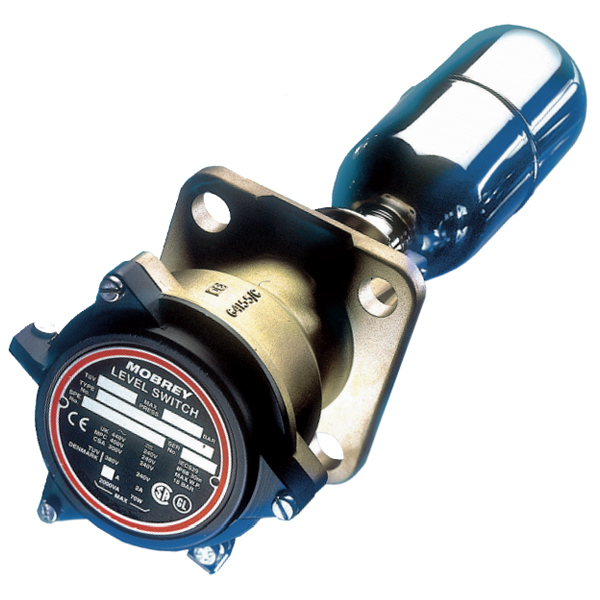

S01PB/F21/1 | Mobrey Horizontal Level Switch

Part Number: S01PB/F21/1Brand: MobreyOrdering InformationModel: S - Horizontal Float SwitchFlange (head) (1): 01 (3) - General purpose, aluminum bronze wetside, Mobrey 'A' flange, 261 psi (18 bar)Max. Tprocess (2): 410°F (210°C)Switch mechanism (4): P - As type D but with gold plated contactsEnclosure: B - Aluminum bronzeSwitch types: D, P, D6, or P6Float (all ratings at Troom) (5): F21/1 (6) - Vertical pump control or alarm, 316 SST, rod length 1524 mm, 435 psi (30 bar) Switch types: All except AMSee page 23 (Refer data sheet) for nozzle and stud lengths. Max. TProcessThe maximum process temperature is dependent on the Flange (Head) and selected Float option. 01See page 19 (Refer data sheet) for Mobrey flange information. General purpose, aluminum bronze wetside, Mobrey ‘A’ flange, 261 psi (18 bar) 410 °F (210 °C) Switch mechanismSee “Switch mechanism specifications” on page 17 (Refer data sheet) for information about all switch mechanisms.See Table 13 on page 20 (Refer data sheet) for a comparison of the float options listed here.See pages 23, 24, and 25 (Refer data sheet) for technical float details and length options.
