Назад в каталог
Промышленное оборудование · Pepperl+Fuchs Incremental Encoder

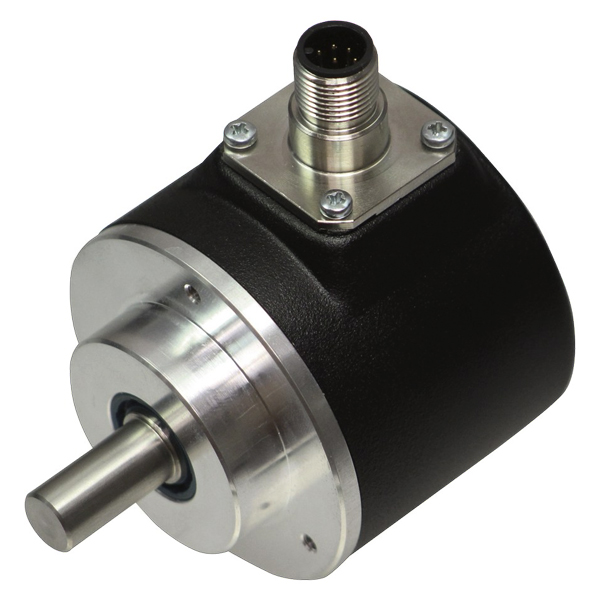

RVI58N-011K1R61N-01024 | Pepperl+Fuchs Incremental Encoder
Артикул: QT-36599
от 170 492 ₸
В наличии: 1
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | 360,00 USD | 170 492 ₸ | 1 | 30–45 дней |
Характеристики
| Estimated Lead Time | Usually Ships in 7 - 10 Working Days |
|---|---|
| ID каталога | 40377 |
| Model | Incremental EncoderBrand: Pepperl+FuchsSpecificationsUp to 5000 pprIndustrial standard housing Ø58 mmServo or clamping flange10 V ... 30 V with short-circuit proof push-pull outputOrdering CodeRV - Shaft Version: Solid shaft158N - Housing Material: Aluminium, powder coated-011 - Shaft Dimension/Flange Version: Shaft Ø10 mm x 20 mm with clamping flangeK1 - Connection Type: Cable Ø7.8 mm, 6 x 2 x 0.14 mm², 1 mR - Exit Position: Radial6 - Signal Output: A + B + 0 and A + B + 01 - Output Switching: |
| Part Number | RVI58N-011K1R61N-01024 |
| Shipping Weight | 1 Kg |
| Артикул | RVI58N-011K1R61N-01024 |
Описание
Part Number: RVI58N-011K1R61N-01024Model: Incremental EncoderBrand: Pepperl+FuchsSpecificationsUp to 5000 pprIndustrial standard housing Ø58 mmServo or clamping flange10 V ... 30 V with short-circuit proof push-pull outputOrdering CodeRV - Shaft Version: Solid shaft158N - Housing Material: Aluminium, powder coated-011 - Shaft Dimension/Flange Version: Shaft Ø10 mm x 20 mm with clamping flangeK1 - Connection Type: Cable Ø7.8 mm, 6 x 2 x 0.14 mm², 1 mR - Exit Position: Radial6 - Signal Output: A + B + 0 and A + B + 01 - Output Switching: 10 V ... 30 V, push-pullN - Option: Normal-01024 - Pulse count
