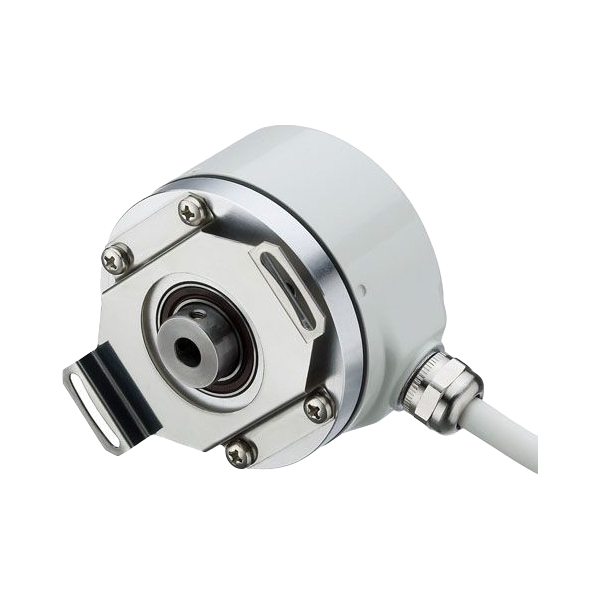

FeaturesUniversal industrial rotary encodersUp to 40,000 steps with 10,000 linesHigh degree of signal accuracyIngress protection up to IP67Fits most applications due to many flange and connection optionsSuitable for high shock loadsTypical fields of application are machine tools, CNC axes, Packaging machines, Motors/ drives, Injection moulding machines, Sawing machinesFor EX applications, see RX 70-lOperating temperature up to 100°C (RI 58-T) Ordering Information Type RI58-O Number of pulses 5000 1 Supply voltage(1) E DC 10 - 30 V Flange, Protection, Shaft(2) K.43 Clamping M3, IP65(3), 7 mm Output(4) 4 Push-pull Connection(5)(6) H M23 connector (Conin), 12 pole, radial, ccw DC 10 - 30 V available with output K, I, R/ DC 5 V available with output R, T other flange versions can be realized by combination of clamping flange + flange adapter (see Accessories), e.g. RI58 with synchro flange and 10 mm-shaft: version clamping flange with 10 mm shaft + synchro flange adapter (1 522 328) Protection class shaft input (EN 60529) IP64 Output code "K" and "I": short-circuit-proof Connection code "O", "K": according to MIL-C-5015 IP67 on cover with connector only if IP67 mating connector mounted properly.
