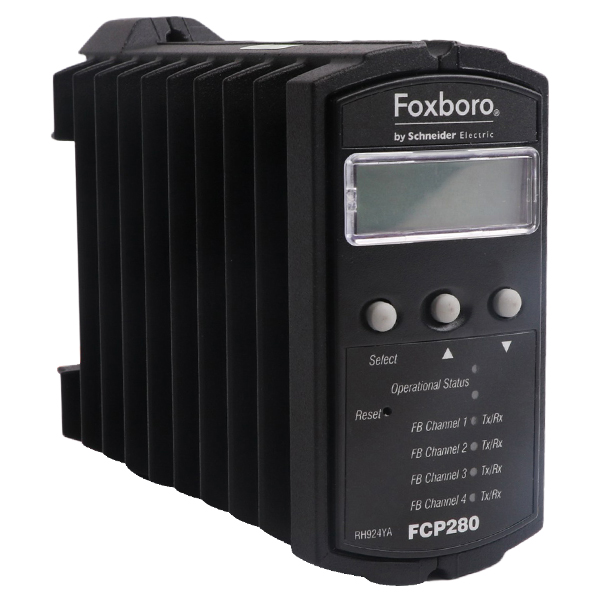

RH924YA | Foxboro FCP280 Field Control Processor

Part Number: RH924YAModel: FCP280 Field Control ProcessorManufacturer: FoxboroFeaturesPerforms regulatory, logic, timing, and sequential control together with connected Fieldbus Modules (FBMs)Performs data acquisition and alarm detection and notificationSupports up to 128 200 Series FBMs, or up to 128 of a combination of 100 Series FBMs and 200 Series FBMs (with no more than 64 100 Series FBMs in this configuration) No Fieldbus Communication Module is required.No Fieldbus Expansion Module is required for Expanded fieldbus support.Supports self-hosting mode, which allows the FCP280 to boot itself with a valid control database even without its host workstationOffers unique, patented, fault-tolerant operation using two control modules to greatly improve reliability relative to other process controllersOffers on-line image upgrade (OLUG) of a fault tolerant FCP280 without shutting down the processLiquid Crystal Display (LCD) displays letterbug and real-time roles and statusesConnects to The Mesh control network via standard fiber optic or copper 100 Mbps Ethernet cables
