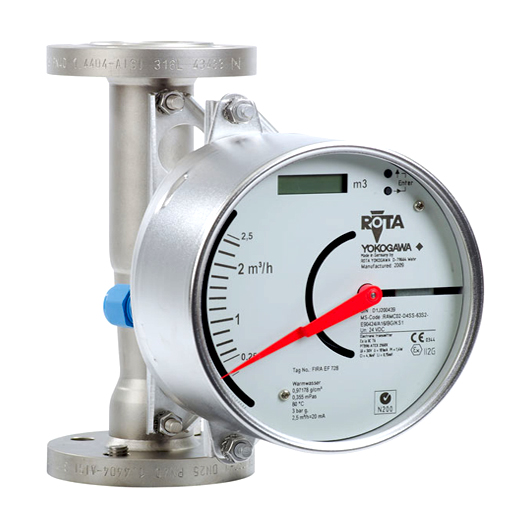

Ordering Information Model RAMC02 Size DN 25 (1 inch) Process connection -A1 ASME flange class 150, process connection dimensions + facing acc. ASME B16.5 Material of wetted parts SS Stainless steel Cone / Float -53L1 Input signal 4 ... 20 mA Indicator/Transmitter -J Indicator with transmitter, HART® 7 (includes Software Tag HART® 7) Housing type 91 Housing Al, yellow painted Power supply/Output 424 24 V DC; 2-wire; 4 to 20 mA Housing Coating /X1 Single layer epoxy coating system for housing type 91; Cover green RAL 6001, Bottom green RAL 6001 Marking /B0/BG Tag plate (1.4404/316L) on flange and marking on scaleCustomer specific notes on scale Hazardous area approvals /KF1 ATEX flame proof “d”/ dust proof “tb” Test and certificates /P3/P6/PP Similar to /P2 + Test report acc. to EN 10204-2.2Material certificate acc. to EN 10204-3.1Pressure test report flow tube acc. to EN 12266-1 Damping /SD Float damping system User's Manuals /IE1 Quantity of instruction manuals in English
