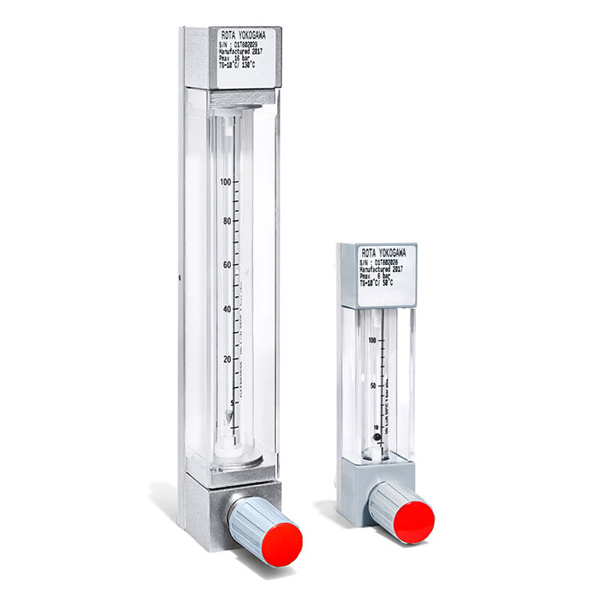

RAGL41-T0SS-SSSBE-M633G-PDBGN | Yokogawa RAGL Small Laboratory Rotameters

Part Number: RAGL41-T0SS-SSSBE-M633G-PDBGNModel: RAGL Small Laboratory RotametersBrand: YokogawaFeaturesSuitable for applications according to IEC 61508:2010 and ISO 13849-1Space-saving designNeedle valves for fine adjustment of flowNegligible pressure lossCost-effective solutionGeneral SpecificationsFor Pipe Sizes: 1/4 inch to 3/8 inchProcess Connections: Threaded, Swagelok, cutting ring, nozzleMeasuring Range:Water 20 °C: 2 ml/h - 600 l/hAir 20 °C 1 bar abs.: 0.1 l/h - 6300 l/hWetted Parts Material:Borosilicate glass, 1.4571 (AISI 316Ti) or PolypropyleneVarious float materials availableGasket: NBR, FKM, PTFEProcess Temperature: -25 °C to + 130 °CProcess Pressure: 16 barAmbient Temperature: -25 °C to 80 °CMeasuring accuracy acc. VDI/VDE 3513 sheet 2 (qG=50 %): 1.6 % / 2.5 % / 4 % /Hazardous Area Approvals: ATEX, IECEx and NEPSISuitable for Applications acc. IEC 61508 and Machinery Directive ISO 13849-1: YesAdditional Features:Limit switches for low/high alarmsFine control valvesPressure controller
