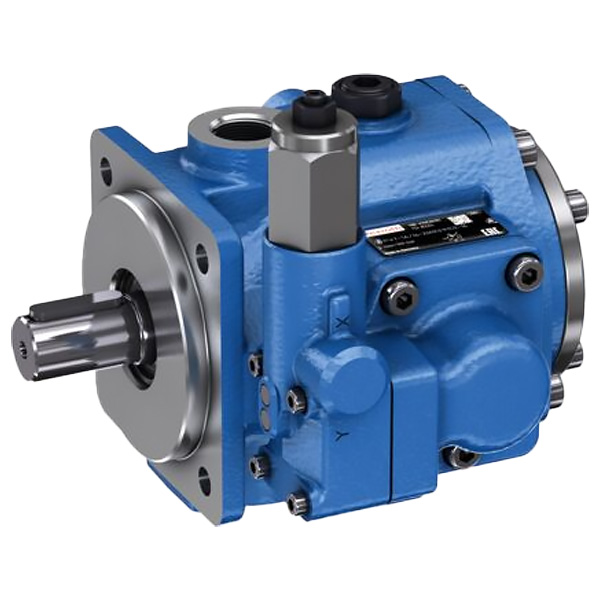

PV7-1X/16-20RE01MC0-16

FeaturesVariable displacementLow operating noiseExtended bearing life cycle thanks to hydrodynamically lubricated plain bearingsPressure and flow can be controlledLow hysteresisVery low control up times and down control timesMounting dimensions according to ISO 3019-2.Connection dimensions according to ISO 6162-1 and ISO 228-1Suitable for HLP, HETG, HEES and HFD-U hydraulic fluidsStandard Series PV7 single pumps can be combined with multiple pumps as well as internal gear, external gear, axial piston and radial piston pumps.Used for drives in continuous operation with variable flow requirement and a high share in the pressure holding function, e.g.:–– machine tools–– hydrostatic bearings–– constant pressure systems Ordering Information Model PV7 Vane pump, variable, pilot-operated Series 1X Series 1A to 1Z (1A to 1Z have unchanged installation and connection dimensions) Frame size (BG) and size (NG) /16-20 BG 16 ? NG 20 cm³ Direction of rotation R Viewed on drive shaft clockwise Drive shaft E Cylindrical drive shaft according to ISO 3019-2 with output Line connections 01 Frame sizes 10, 16, 25Suction and pressure port: Pipe thread according to ISO 228-1 Seal material M NBR seals, suitable for HLP mineral oil according to DIN 51524 Controller type C Pressure controller Controller option 0 Standard Zero stroke pressure range -16 20 ? 100 bar
