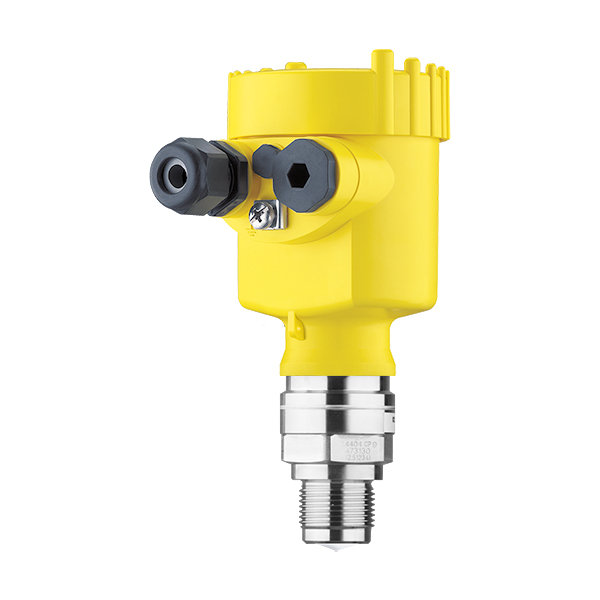

VEGA VEGAPULS 64 Radar Sensor

The VEGAPULS 64 is a sensor for continuous level measurement of liquids. With small tanks or in case of narrow space the small process fittings offer special advantages. The very good signal focusing enables the use in vessels with many installations such as e.g. stirrers and heating spirals.BenefitsExact measuring results independent of process conditionsHigh plant availability, because wear and maintenance-freeMaintenance-free operation through non-contact measuring principle Technical Specifications Measuring range - Distance 30 m [Meter - Foot] Process temperature -196 ... 200 °C [°C - °F] Process pressure -1 ... 25 bar [Bar - kPa - psi] Accuracy ± 1 mm Frequency 80 GHz Beam angle = 3° Version With plastic horn antenna ø 80 mmThread with integrated horn antennaFlange with encapsulated antenna systemHygienic fitting with encapsulated antenna system Materials, wetted parts PFAPTFE316LAlloy C22 (2.4602)PEEK Threaded connection = G¾, = ¾ NPT Flange connection = DN50, = 2" Hygenic fittings Clamp = 2", DN50 - DIN32676, ISO2852Slotted nut = 2", DN50 - DIN 11851DRD connection ø 65 mmfor NEUMO BioControl D50 PN16 / 316L Seal material EPDMFKMFFKM Housing material PlasticAluminiumStainless steel (precision casting)Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar)IP66/IP67IP66/IP68 (1 bar) Output 4 … 20 mA/HART - two-wire Ambient temperature -40 ... 80 °C
