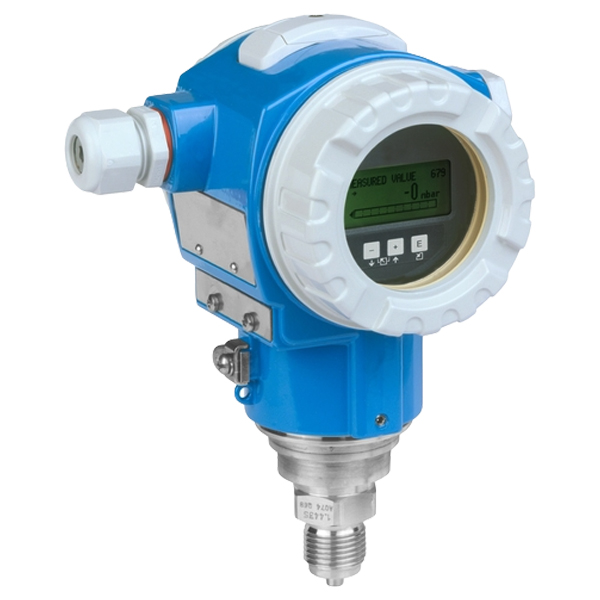

PMP71-FQC1SH1RDAB4+Z1 | E+H Cerabar S PMP71 Pressure Transmitter

Ordering Information Model PMP71 Cerabar S PMP71 Approval F ATEX II Ex ia / Ex d + FM/CSA IS + XP ATEX II 1/2G Ex ia IIC T6+ ATEX II 2G Ex d IIC T6+ FM/CSA IS + XP Cl.I.II Div.1 Gr.A-G/B-G FM: zone 1,2/CSA: zone 1,2 Output; Operating Q FOUNDATION Fieldbus; inside + LCD Housing; Cover Sealing; Cable Entry C T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover Sensor Range; Sensor Overload Limit 1S 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi Calibration; Unit H Customized pressure + 5-point works calib. certificate; see additional spec. Membrane Material 1 316L Process Connection RD Thread ANSI MNPT1/2 hole, 316L Fill Fluid A Silicone oil Additional Option 1 B 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate Additional Option 2 4 Pressure test, internal procedure, test report Marking Z1 Tagging (TAG), see additional spec.
