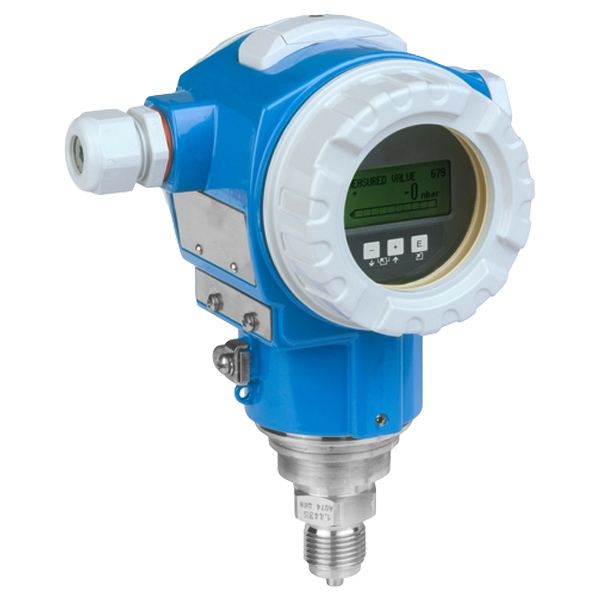

PMP71-ABA2P11GAAAA | E+H Cerabar S PMP71 Pressure Transmitter

Field of ApplicationThe Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.Two chamber aluminum or stainless steel (316L) housing.Process connections: Threads and flange connectionsProcess temperature: -40 to +125°C (-40 to +257°F)Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)Accuracy: ±0.05%, "Platinum" ±0.025%International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SILBenefitsBest accuracy, reproducibility and long-term stabilityHighest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION FieldbusHistoROM data management concept for fast and easy commissioning, maintenance and diagnosticsOverload-resistant and function-monitored from the measuring cell to the electronicsAvailable with mounted manifolds: always fit, always tested for leaksSeamless and independent system integration (HART/PA/FF) Ordering Information Model PMP71 Cerabar S PMP71 Approval A Non-hazardous area Output; Operating B 4-20mA HART; inside + LCD Housing; Cover Sealing; Cable Entry A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) Sensor Range; Sensor Overload Limit 2P 10bar/1MPa/150psi abs; 40bar/4MPa/600psi Calibration; Unit 1 Sensor range; mbar/bar Membrane Material 1 316L Process Connection GA Thread ISO228 G1/2 EN837, 316L Fill Fluid A Silicone oil Additional Option 1 A Not selected Additional Option 2 A Not selected
