Промышленное оборудование · E+H Cerabar S PMP71

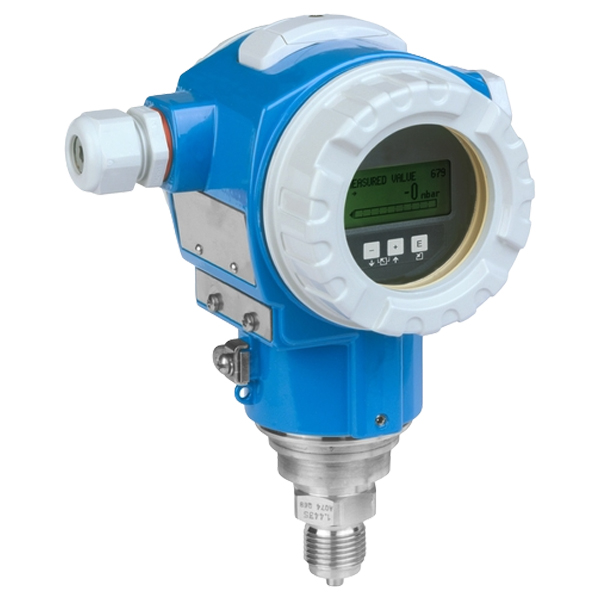

PMP71-ABA1SC1GAABE | E+H Cerabar S PMP71 Pressure Transmitter

Артикул: QT-92417

от 1 066 146 ₸

В наличии: 0

Предложения складов

Склад	Цена	В тенге	Остаток	Доставка

Характеристики

Condition	New & Original in Factory Packing
Estimated Lead Time	12 - 16 Weeks
Factory Warranty	12 Months
ID каталога	100428
Model	Cerabar S PMP71 Pressure TransmitterBrand: Endress+Hauser
Part Number	PMP71-ABA1SC1GAABE
Shipping Weight	5 Kg
Артикул	PMP71-ABA1SC1GAABE
Срок поставки	12 - 16 Weeks

Описание

Ordering Information Model PMP71 Cerabar S PMP71 Approval A Non-hazardous area Output; Operating B 4-20mA HART; inside + LCD Housing; Cover Sealing; Cable Entry A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) Sensor Range; Sensor Overload Limit 1S 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi Calibration; Unit C **Works calib. certificate 5-point; see additional spec. Membrane Material 1 316L Process Connection GA Thread ISO228 G1/2 EN837, 316L Fill Fluid A Silicone oil Additional Option 1 B 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate Additional Option 2 E SIL
