Промышленное оборудование · E+H Cerabar S PMP71

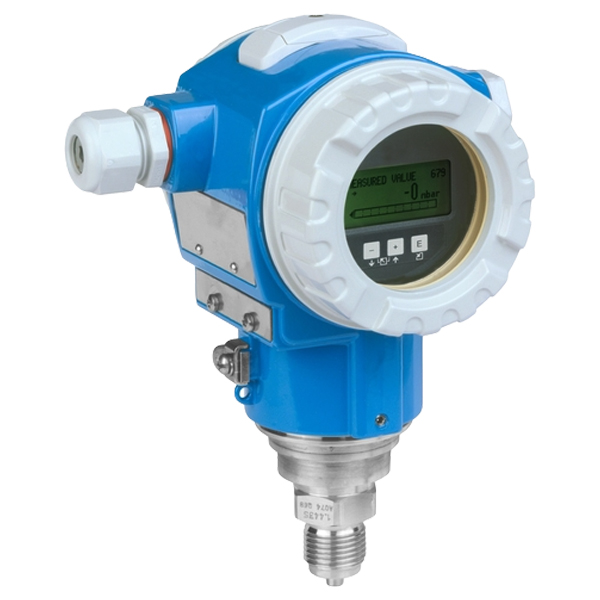

PMP71-AAA1WB1GAAAA | E+H Cerabar S PMP71 Pressure Transmitter
Артикул: QT-56368
от 793 358 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 10 - 12 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 63267 |
| Model | Cerabar S PMP71 Pressure TransmitterBrand: Endress+Hauser |
| Part Number | PMP71-AAA1WB1GAAAA |
| Shipping Weight | 5 Kg |
| Артикул | PMP71-AAA1WB1GAAAA |
| Срок поставки | 10 - 12 Weeks |
Описание
Ordering Information Model PMP71 Cerabar S PMP71 Approval A Non-hazardous area Output; Operating A 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) Sensor Range; Sensor Overload Limit 1W 400bar/40MPa/6000psi gauge; 600bar/60MPa/9000psi Calibration; Unit B Membrane Material 1 316L Process Connection GA Thread ISO228 G1/2 EN837, 316L Fill Fluid A Silicone oil Additional Option 1 A Not selected Additional Option 2 A Not selected
