Промышленное оборудование · E+H Cerabar S PMP71

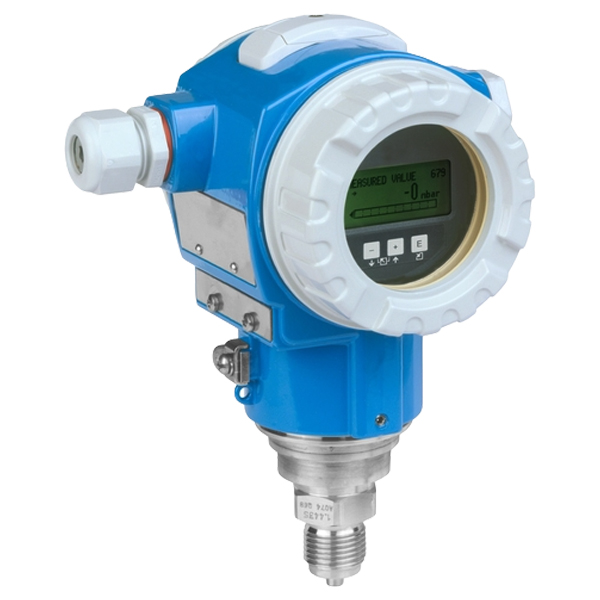

PMP71-1B11SB2RDABE | E+H Cerabar S PMP71 Pressure Transmitter
Артикул: QT-92992
от 1 305 403 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 12 - 14 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 101007 |
| Model | Cerabar S PMP71 Pressure TransmitterBrand: Endress+Hauser |
| Part Number | PMP71-1B11SB2RDABE |
| Shipping Weight | 8 Kg |
| Артикул | PMP71-1B11SB2RDABE |
| Срок поставки | 12 - 14 Weeks |
Описание
Ordering Information Model PMP71 Cerabar S PMP71 Approval 1 ATEX II 1/2G Ex ia IIC T6 Output; Operating B 4-20mA HART; inside + LCD Housing; Cover Sealing; Cable Entry 1 T14 316L IP66/67 NEMA6P; EPDM;M20 gland, T14 = side cover (Ex d > M20 thread)Sensor Range; Sensor Overload Limit 1S 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi Calibration; Unit B **Customised; see additional spec. Membrane Material 2 AlloyC276 Process Connection RD Thread ANSI MNPT1/2 hole, 316L Fill Fluid A Silicone oil Additional Option 1 B 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate Additional Option 2 E SIL
