Промышленное оборудование · E+H Deltabar PMD75 Differential

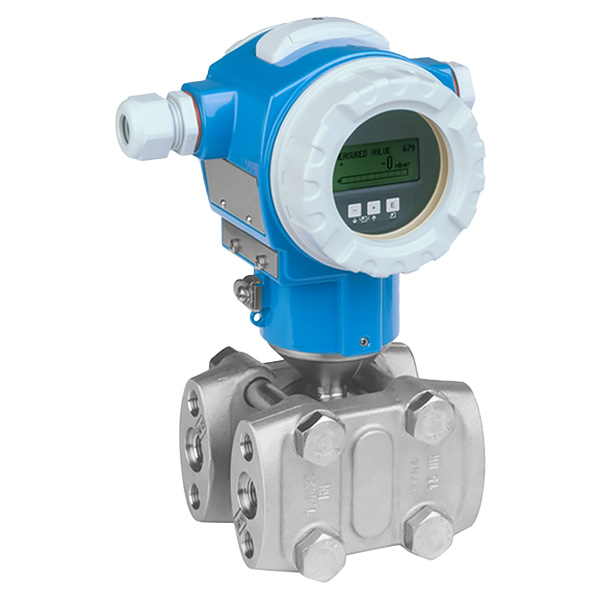

PMD75-AAJ7LE1DAAU | E+H Deltabar PMD75 Differential Pressure Transmitter
Артикул: QT-95309
от 1 145 141 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 105332 |
| Model | Deltabar PMD75 Differential Pressure TransmitterBrand: Endress+Hauser |
| Part Number | PMD75-AAJ7LE1DAAU |
| Shipping Weight | 5 Kg |
| Артикул | PMD75-AAJ7LE1DAAU |
| Модель | Deltabar PMD75 Differential Pressure TransmitterBrand: Endress+Hauser |
Описание
Ordering Information Model PMD75 Deltabar PMD75 Differential Pressure Transmitter Approval A Non-hazardous area Output; Operating A 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry J T15 Alu IP66/67 NEMA6P; EPDM; M20 gland, T15 = top cover (Ex d > M20 thread) Nominal Range; Cell Material; PN 7L 16bar/1.6MPa/240psi; 316L; 160bar/ 16MPa/2400psi Calibration; Unit E Customised pressure; see additional spec. Membrane Material 1 316L Process Connection D NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L Seal A FKM Viton Additional Option 1 A Not selected Additional Option 2 U Mounting bracket, wall/pipe, 316L, heavy duty design
