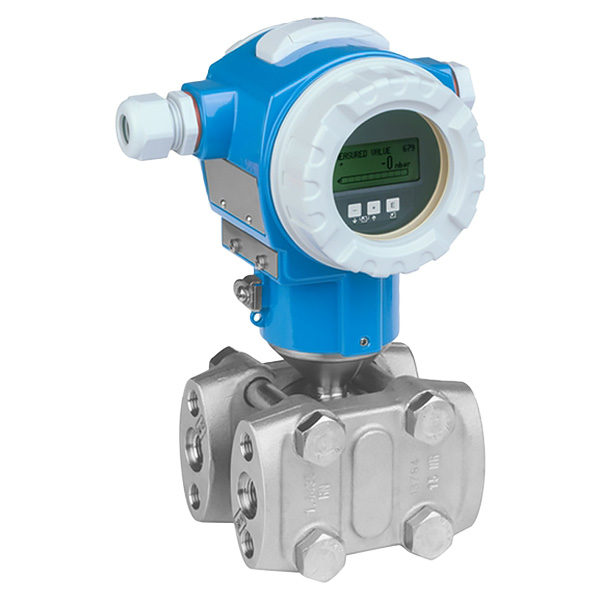

Ordering Information Model PMD75 Deltabar PMD75 Differential Pressure Transmitter Approval A Non-hazardous area Output; Operating A 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) Nominal Range; Cell Material; PN 7H 3bar/300kPa/45psi; 316L; 160bar/ 16MPa/2400psi Calibration; Unit B **Customised; see additional spec. Membrane Material 1 316L Process Connection D NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L Seal A FKM Viton Additional Option 1 B 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate Additional Option 2 U Mounting bracket, wall/pipe, 316L, heavy duty design Marking Z1 Tagging (TAG), see additional spec.
