Промышленное оборудование · E+H Deltabar PMD75 Differential

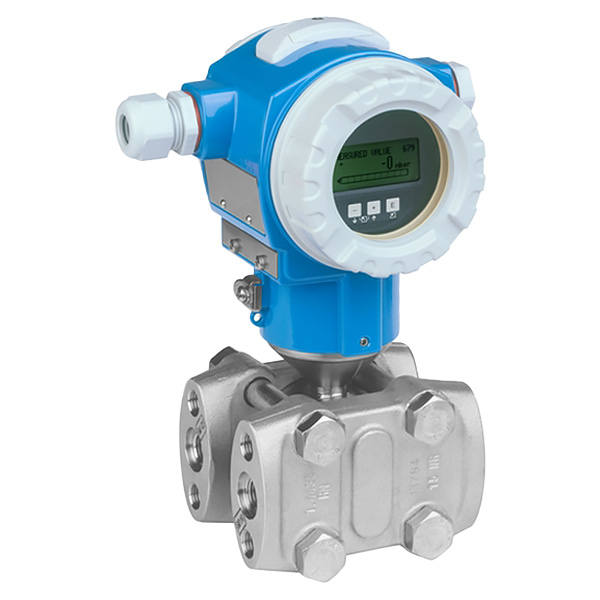

PMD75-5A17BB1DABA+Z1 | E+H Deltabar PMD75 Differential Pressure Transmitter
Артикул: QT-91762
от 2 117 516 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 12 - 16 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 99769 |
| Model | Deltabar PMD75 Differential Pressure TransmitterBrand: Endress+Hauser |
| Part Number | PMD75-5A17BB1DABA+Z1 |
| Shipping Weight | 8 Kg |
| Артикул | PMD75-5A17BB1DABA+Z1 |
| Срок поставки | 12 - 16 Weeks |
Описание
Ordering Information Model PMD75 Deltabar PMD75 Differential Pressure Transmitter Approval 5 ATEX II 2G Ex db IIC T6 Gb Output; Operating A 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry 1 T14 316L IP66/67 NEMA6P; EPDM;M20 gland, T14 = side cover (Ex d > M20 thread) Nominal Range; Cell Material; PN 7B 10mbar/1kPa/0.15psi; 316L; 160bar/ 16MPa/2400psi Calibration; Unit B **Customised; see additional spec. Membrane Material 1 316L Process Connection D NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L Seal A FKM Viton Additional Option 1 B 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate Additional Option 2 A Not selected Marking Z1 Tagging (TAG), see additional spec.
