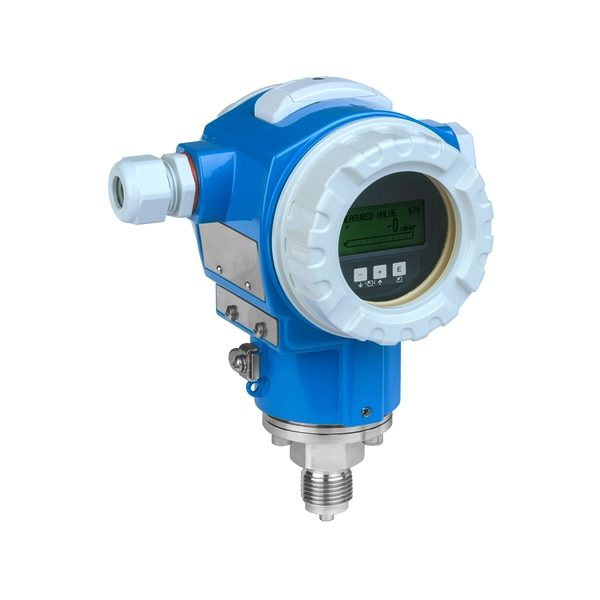

PMC71-ABA1CERDAAU+Z1 | E+H Cerabar S PMC71 Pressure Transmitter
Артикул: QT-78584
от 1 105 359 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 12 - 16 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 86536 |
| Manufacturer | Endress+Hauser |
| Model | Cerabar S PMC71 Pressure Transmitter |
| Part Number | PMC71-ABA1CERDAAU+Z1 |
| Shipping Weight | 3 Kg |
| Артикул | PMC71-ABA1CERDAAU+Z1 |
| Срок поставки | 12 - 16 Weeks |
Описание
Ordering Information Model PMC71 Absolute and gauge pressure Cerabar PMC71 Approval A Non-hazardous area Output; Operating B 4-20mA HART; inside + LCD Housing; Cover Sealing; Cable Entry A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) Sensor Range; Sensor Overload Limit 1C 100mbar/10kPa/1.5psi gauge; 4bar/400kPa/60psi Calibration; Unit E Customised pressure; see additional spec. Process Connection RD Thread ANSI MNPT1/2 hole 11.4mm, 316L Seal A FKM Additional Option 1 A Not selected Additional Option 2 U Mounting bracket, wall/pipe, 316L Marking Z1 Tagging (TAG), see additional spec.
