Промышленное оборудование · Endress+Hauser

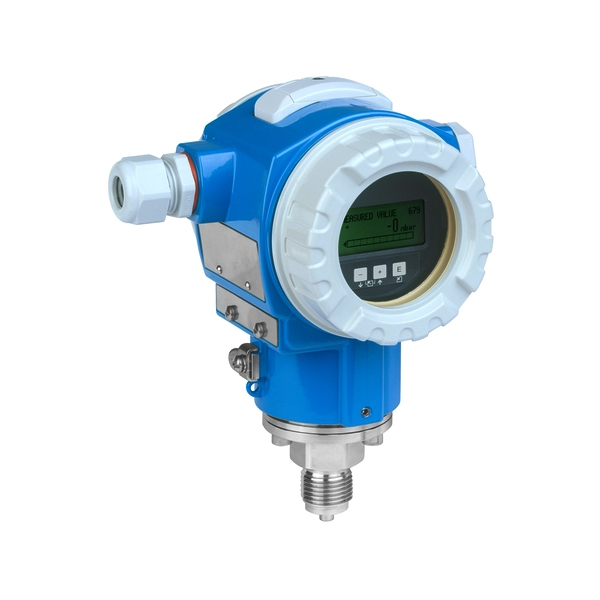

PMC71-AAC1SBRHA3U+Z1 | E+H Cerabar S PMC71 Pressure Transmitter
Артикул: QT-91555
от 1 066 146 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 12 - 16 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 99561 |
| Manufacturer | Endress+Hauser |
| Model | Cerabar S PMC71 Pressure Transmitter |
| Part Number | PMC71-AAC1SBRHA3U+Z1 |
| Shipping Weight | 8 Kg |
| Артикул | PMC71-AAC1SBRHA3U+Z1 |
| Срок поставки | 12 - 16 Weeks |
Описание
Ordering Information Model PMC71 Absolute and gauge pressure Cerabar PMC71 Approval A Non-hazardous area Output; Operating A 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry C T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover Sensor Range; Sensor Overload Limit 1S 40bar/4MPa/600psi gauge; 60bar/6MPa/900psi Calibration; Unit B **Customised; see additional spec. Process Connection RH Thread ANSI FNPT1/2, 316L Seal A FKM Additional Option 1 3 Individual test, test report Additional Option 2 U Mounting bracket, wall/pipe, 316L Marking Z1 Tagging (TAG), see additional spec.
