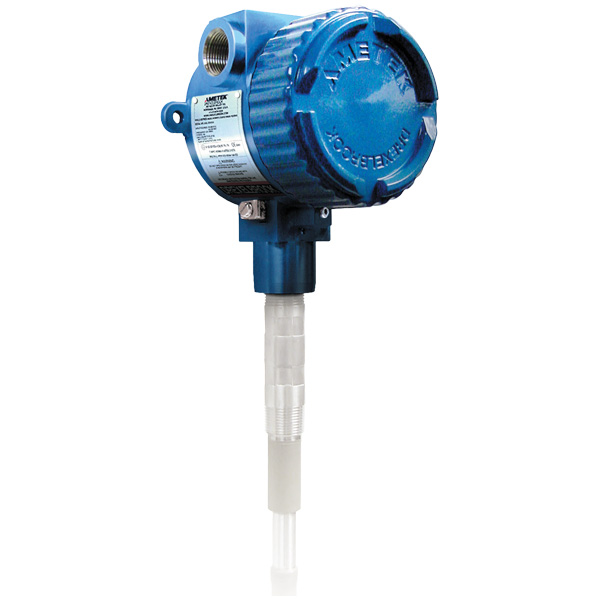

PLL1-1002-DB1Z-2000.0-254.0 | Ametek Drexelbrook The Point™ Line Powered RF Series Point Level Switch

Ordering Information Technology P RF Admittance Measurement Type L Std 2 pF Fixed Input L Universal Power Supply 19-250 VAC, 18-200 VDC Output 1 One DPDT Relay, dry contacts, 5A, 120VAC (Min 100 mA / 12 VDC) Housing 1 No Approvals, NEMA 4X/IP66, ¾” conduit entries Electronics 0 Integral Sensing Element 02 Application: General purpose, longer insertion lengths with cable attachment and 316SS bottom weightSensing Element: 700-1202-024Pressure/Temperature: 13.8 bar @ 177°C (200 PSI @ 350°F)Wetted Parts: 316SS and PEEK Mounting Type DB1Z
