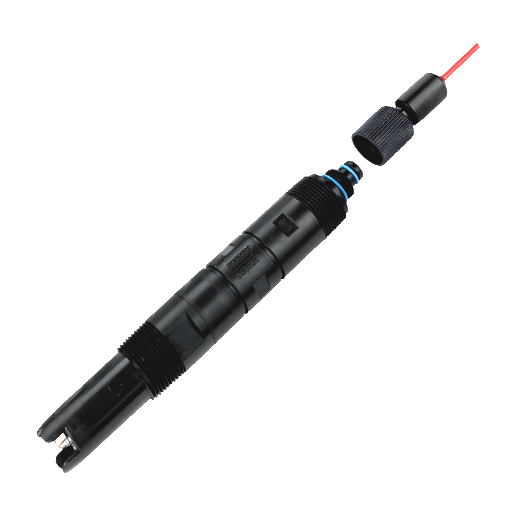

PH10-1N2A-2FN

Ordering Information Model PH10 DolpHin pH Sensor pH Electrode Type -1 Domed, High Temperature, Glass Bulb with Protective Guard Electronic Configuration N Analog without Preamplifier Temperature Compensation 2 3-Wire, 1000 O Platinum RTD(1),(2) Sensor Termination A 10 ft (3.05 m) Integral Cable Terminated with Crimped-on Straight Pin Lugs Optional Selections -2FN Integral Std. Temp Sensor Cable, 20 ft (6.1 m) long(3)FM DIv 2 Selection of Preamplifier (P), with 3-wire RTD (2 or 4) and with Variopin Quick Connector (B or Q) cannot be made at the same time. Any two are allowed together, but not all three.The PH10-*S option utilizes a 1000-O RTD only, has an integral connector requiring a mating patch cord.Cable options applicable to Sensor Termination Codes A and B only.
