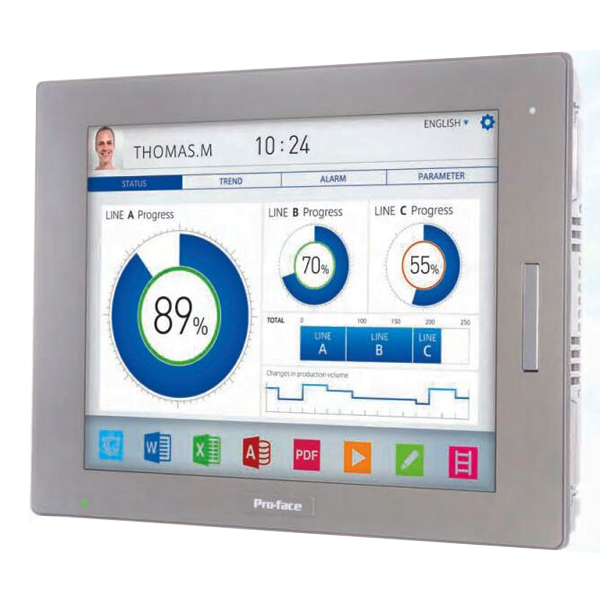

PFXSP5700TPD+PFXSP5B10 | Pro-face SP5000 Series HMI 15" Display Size

Functional SpecificationsDisplay Type: TFT Color LCDDisplay Size: 15”Resolution: 1,024 x 768 pixels (XGA)Effective Display Area: W304.1 x H228.1 mm (W11.97 x H8.98 in.)Display Colors: 16 million colors For details about Display Colors, refer to the manual for your screen editing software.Backlight: White LED (Not user replaceable. When replacement is required, contact your local distributor.)Brightness Control: 0...100 (Adjusted with touch panel or software)Backlight Service Life: 50,000 hours or more (continuos operation at 25 °C [77 °F]before backlight brightness decreases to 50%Application Memory: Screen Size: 64MB *SD cardTouch Panel Type: Resistive Film (analog, multi-touch)Touch Panel Resolution: 1,024 x 1,024Touch Panel Service Life: 1 million times or moreUSB (TYPE-A): Front USB 2.0 (Type A) x 1¹USB (mini-B): USB 2.0 (mini-B) x 1² When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one bar code reader. If you connect multiple devices that are the same type, only the first device will work.When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one bar code reader. If you connect multiple devices that are the same type, only the first device will work.
