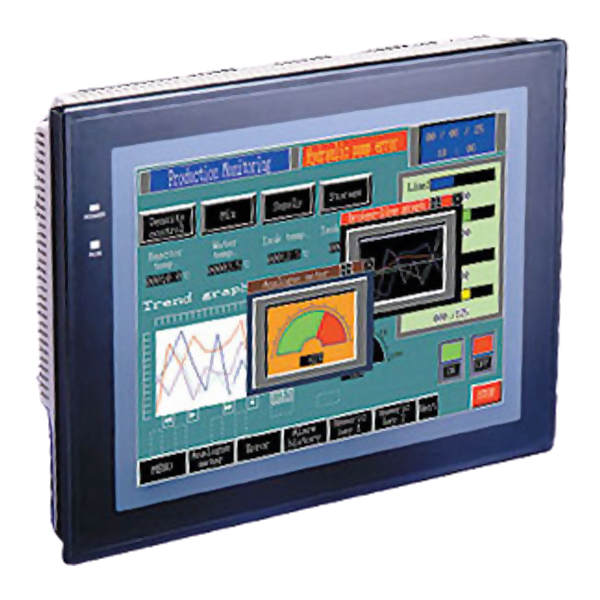

NT631C-ST153-EV3 | Omron NT631C Programming Terminal

Part Number: NT631C-ST153-EV3Model: NT631C Programming Terminal Brand: OmronGeneral SpecificationsRated power supply voltage: 24 VDCAllowable power supply voltage range: 20.4 to 26.4 VDC (24 VDC -15%/+10%)Power consumption: 18 W max.Ambient operating temperature: 0 to 50 °CStorage temperature: -20 to 60 °CAmbient operating humidity: 35% to 85% (with no condensation)Ambient operating environment: No corrosive gasesNoise immunity: Conforms to IEC 61000-4-4 at 2 kV (power supply line).Vibration resistance (during operation):5 to 9 Hz, single amplitude: 3.5 mm9 to 150 Hz, 9.8 m/s²10 times (1 octave/min) each in X, Y, and Z directionsShock resistance (during operation): 147 m/s², 3 times each in X, Y, and Z directionsWeight: 2.5 kg max.Degree of protection (front panel): Equivalent to IP65 oil-proof type and NEMA4 ** The equipment cannot be used for long periods of time in locations which expose the panel to spills of oil.
