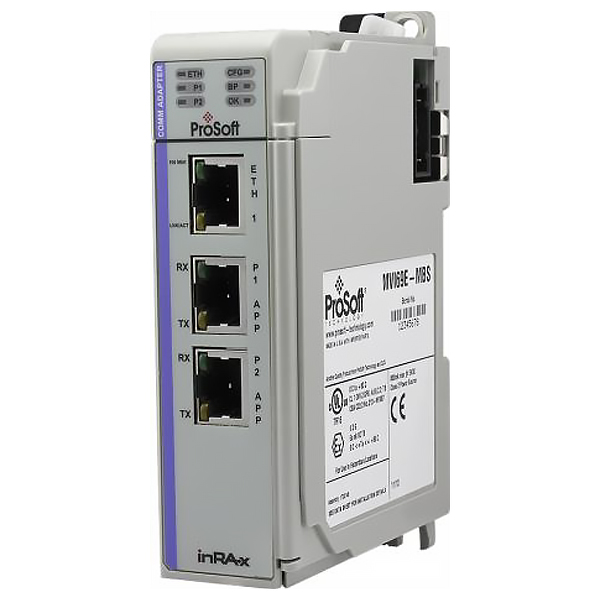

MVI69E-MBS | ProSoft Technology Modbus Serial Enhanced Communication Module

The MVI69E-MBS Modbus Serial module for CompactLogix™ is designed for all applications requiring Modbus Serial connectivity. This module comes with an Add-on Profile and an Add-on Instruction to reduce commissioning time. The MVI69E-MBS has two serial ports and can support both Master and/or Slave connectivity to interface with a variety of devices using the Modbus Protocol.Features:Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control dataAdd-on Profile support, improving integration in the CompactLogix SystemDiagnostic data available in processor controller tags, enabling decisions to be made based upon node healthModule configuration backed up in CompactLogix project (ACD file)Module acts as a co-processor reducing impact to PLC scan timeSupports up to 10,000 words of dataSupports up to 250 Modbus Commands per portEach port can be configured individually as a Modbus Master or Modbus Slave deviceSupports Enron and Daniel-style Floating point data implementationsSuitable for SCADA and field device interface applications
