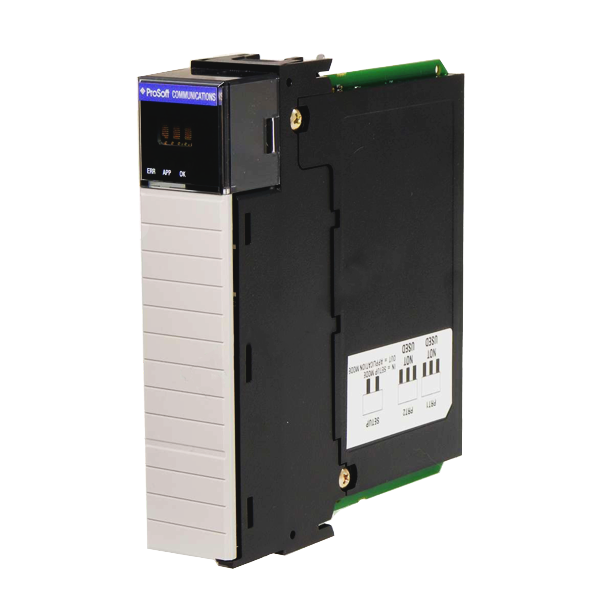

MVI56E-MNETCR | ProSoft Technology Modbus TCP/IP Multi Client Enhanced Network Interface Module

The MVI56E Modbus TCP/IP Multi Client Enhanced Communication Module for Remote Chassis allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to easily interface with multiple Modbus TCP/IP server-compatible instruments and devices. The Multi Client module improves performance when controlling multiple servers on a Modbus TCP/IP network, by supporting up to 30 clients.MVI56E enhancements include configuration and management through the module Ethernet port, and has a web server to access on-board documentation, Add-On Instructions, and sample program files.The MVI56E-MNETCR utilizes a reduced Input/Output (I/O) data block for transferring data to and from a ControlLogix processor. This reduced data block makes it ideal for use in remote rack applications over ControlNetTM. For EtherNet/IPTM applications where bandwidth is not an issue, it is strongly recommended to use the MVI56E-MNETC. Features Benefits Supports up to 30 Clients Faster response for multi-server applicationsReduces network trafficMinimizes impact to other server communications when one server device goes off-line RSLogix™ 5000 Integrated The module communication is integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder fileNo additional PAC/PLC programming required Enable/Disable commands easily from ladder logic. Programmatically enable various networked devices and their functions to support multiple applications or recipes, without having to reconfigure the module Remotely configure and diagnose problems Easy-to-use Windows-based configuration software connects through remote racks using EtherNet/IP and/or ControlNet via a 1756-EnxT and/or 1756-CNB interface module without requiring RSLinx, saving you moneyAllows support of IT and Automation network segmentation MVI56 backward compatible Assists in extending current MVI56 applications by using newer technology that supports existing MVI56 ladder logic and module configuration
