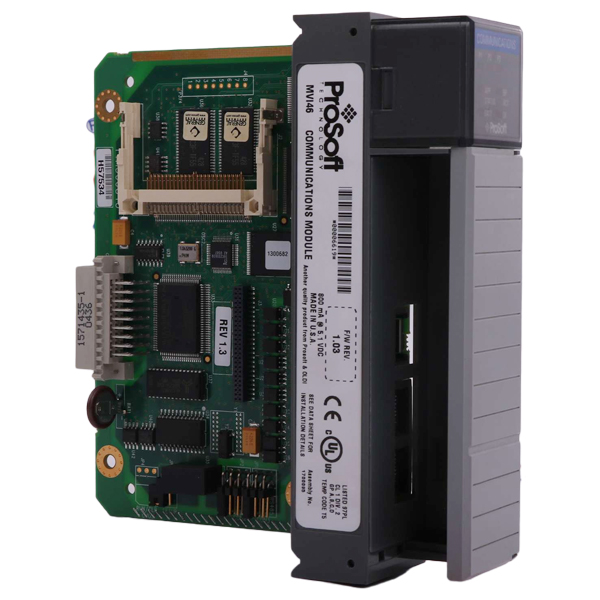

MVI46-MCM | Prosoft Technology Modbus Communication Module

Features and Benefits:The inRAx Modbus Master/Slave Communications module is designed to allow SLC processors to interface easily with Modbus protocol-compatible devices and hosts.The MVI46-MCM module acts as an input/output module between the Modbus network and the Rockwell Automation backplane. The data transfer from the SLC processor is asynchronous from the actions on the Modbus network. A 5000-word register space in the module exchanges data between the processor and the Modbus network.Many host SCADA packages support the Modbus protocol, while devices commonly supporting the protocol include several PLCs, as well as many other third party devices in the marketplace. (For a partial list of devices that speak Modbus, please visit the ProSoft Tested section of the ProSoft Technology web site).Applications:Applications using the Modbus Communication Module can be found in many industrial sectors and in the following applications:Foreign device data concentratorPipelines and offshore platformsFood processingMiningPulp and paperSCADA communicationsSpecifications:Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module using M0/M1 filesLadder Logic is used for data transfer between module and processor. Sample ladder file includedConfiguration data obtained from configuration text file downloaded to module. Sample configuration file included
