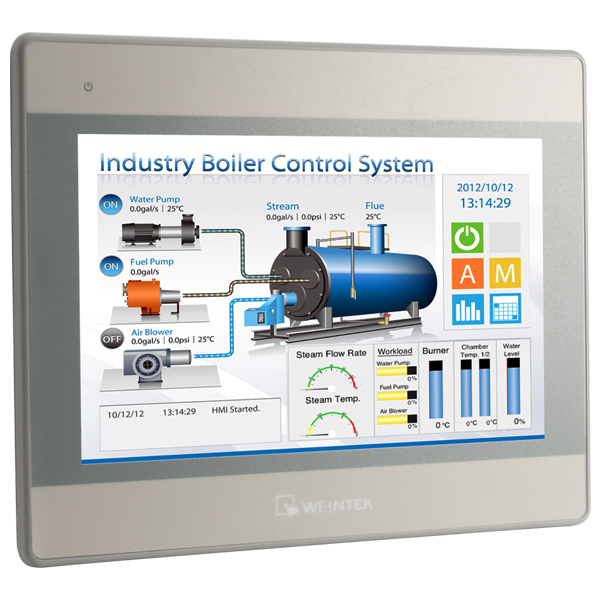

MT8102iE | Weintek Human Machine Interface

SpecificationDisplayDisplay: 10.1" TFTResolution: 1024 x 600Brightness (cd/m²): 350Contrast Ratio: 500:1Backlight Life Time: >50,000 hrs.Colors: 16.7MLCD Viewing Angle (T/B/L/R): 60/60/70/70Touch PanelType: 4-wires Resistive typeAccuracy: Active Area Length(X)±2%, Width(Y)±2%MemoryFlash: 128 MBRAM: 128 MBProcessor32-bit RISC Cortex-A8 600MHzI/O PortUSB Host: USB 2.0 x 1Ethernet: 10/100 Base-T x 1COM 2: RS-485 2W/4WCOM 3: RS-485 2WRTCBuilt-inPowerInput Power: 24±20 VDCPower Isolation: Built-inPower Consumption: 650 mA @ 24 VDCVoltage Resistance: 500VAC (1 min.)Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)SpecificationPCB Coating: YesEnclosure: PlasticDimensions WxHxD: 271 x 213 x 36.4 mmPanel Cutout: 260 x 202 mmMount: Panel mountEnvironmentProtection Structure: NEMA4 / IP65 Compliant Front PanelStorage Temperature: -20° ~ 60°C (-4° ~ 140°F)Operating Temperature: -0° ~ 50°C (32° ~ 122°F)Relative Humidity: 10% ~ 90% (non-condensing)CertificateCE: CE markedSoftwareEasyBuilder Pro
